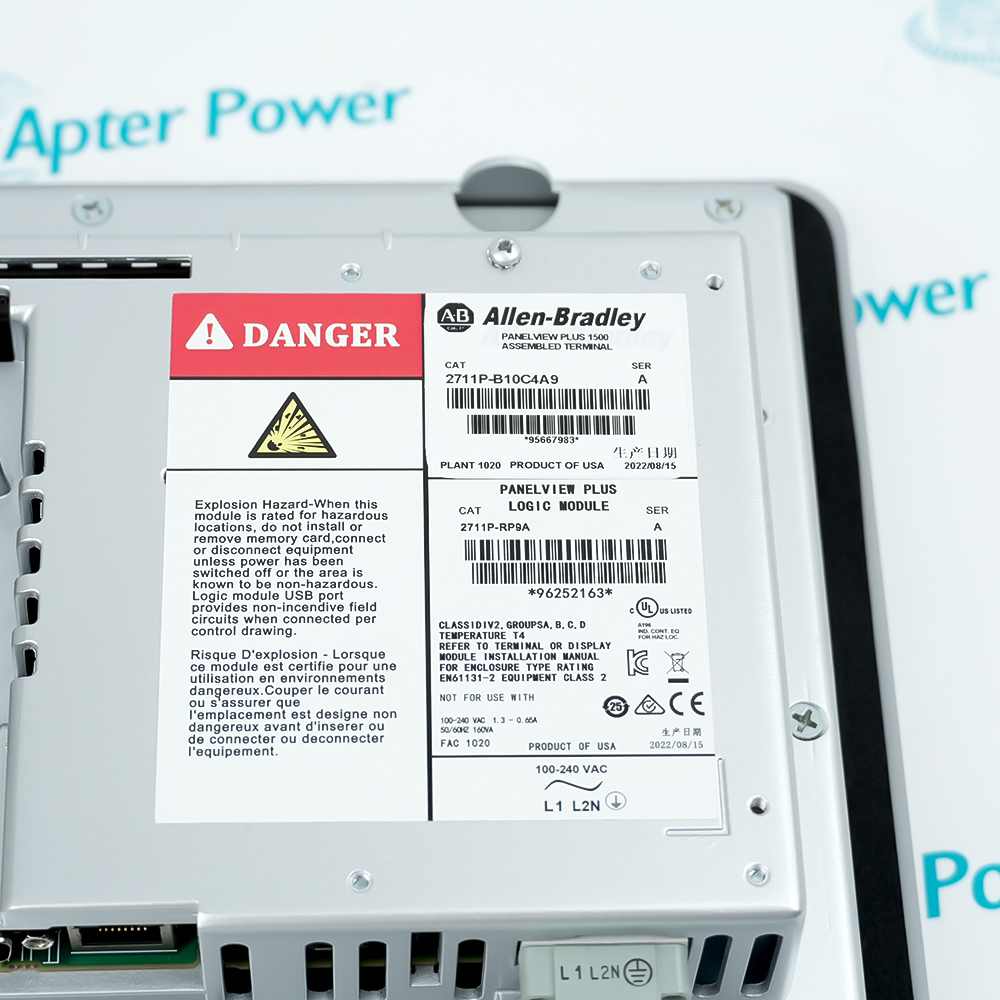

The 2711P-B10C4A9 is an industrial human-machine interface operator terminal, belonging to the 1000 sub-series within the PanelView Plus 6 product family.
Ethernet (10/100 Mbps)
USB Host and Device Ports
Secure Digital (SD) Slot
As an industrial-grade electronic control and display unit, this device contains a 10.4-inch active-matrix color TFT LCD display screen, an analog resistive touchscreen input panel, a stainless-steel domed physical keypad, a 1 GHz central processing unit, and a memory hardware layout consisting of 512 MB of random-access memory and 512 MB of nonvolatile flash memory, while natively incorporating an Ethernet port, an RS-232 serial port, two USB host interfaces, and an SD card storage expansion slot.
The 2711P-B10C4A9 incorporates a removable rear logic module slot that supports external industrial network cards. The front bezel of the housing meets industrial dust and water protection standards for flush-mounting into vertical or horizontal control cabinet panels, and its internal low-level self-test mechanism delivers real-time motherboard and port communication status via hardware indicators.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 2711P-B10C4A9 HMI Terminal Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Stamping Shops
Displays hydraulic press pressure readouts and records physical stroke counts via terminal graphics.
Food Packaging Facilities
Sets sealing temperatures and inputs volumetric parameters for mechanical filling lines.
Petrochemical Refineries
Monitors refining valve alignments and displays heater bed core temperature logs.
Pharmaceutical Formulations
Inputs blending durations and locks granulation parameters under process validation rules.
Iron and Steel Rolling Mills
Monitors steel strip tension profiles and displays roller motor electrical load metrics.
Mining Ore Processing
Tracks slurry density variables and displays grinding mill bearing lubrication pressures.
Operation requires temperature and humidity within specified limits, clean air without corrosive gases, and no sharp objects on the touchscreen or keypad.
The system architecture consists of a modular assembly comprising a display module and a logic board module enclosed in an industrial-grade frame. The terminal is built upon a 1 GHz processor paired with a physical storage architecture that includes 512 MB of Random Access Memory (RAM) and 512 MB of nonvolatile flash memory (with approximately 79 MB allocated as free user space for project database storage).
It is a PanelView Plus 6 1000 series industrial color graphic operator terminal.
What is the screen size and display type of 2711P-B10C4A9?
It features a 10.4-inch color active-matrix TFT LCD display screen.
What is the operator input method of 2711P-B10C4A9?
It utilizes a dual input method combining a keypad and an analog resistive touchscreen.
How should the 2711P-B10C4A9 be mounted and used?
It is designed for flush panel-mounting into a control cabinet or enclosure door.
Do you offer global delivery services?
Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.
How many parts do you have in stock?
We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies. If you are unable to find what you are looking for then don’t panic.
