      1771-SDN

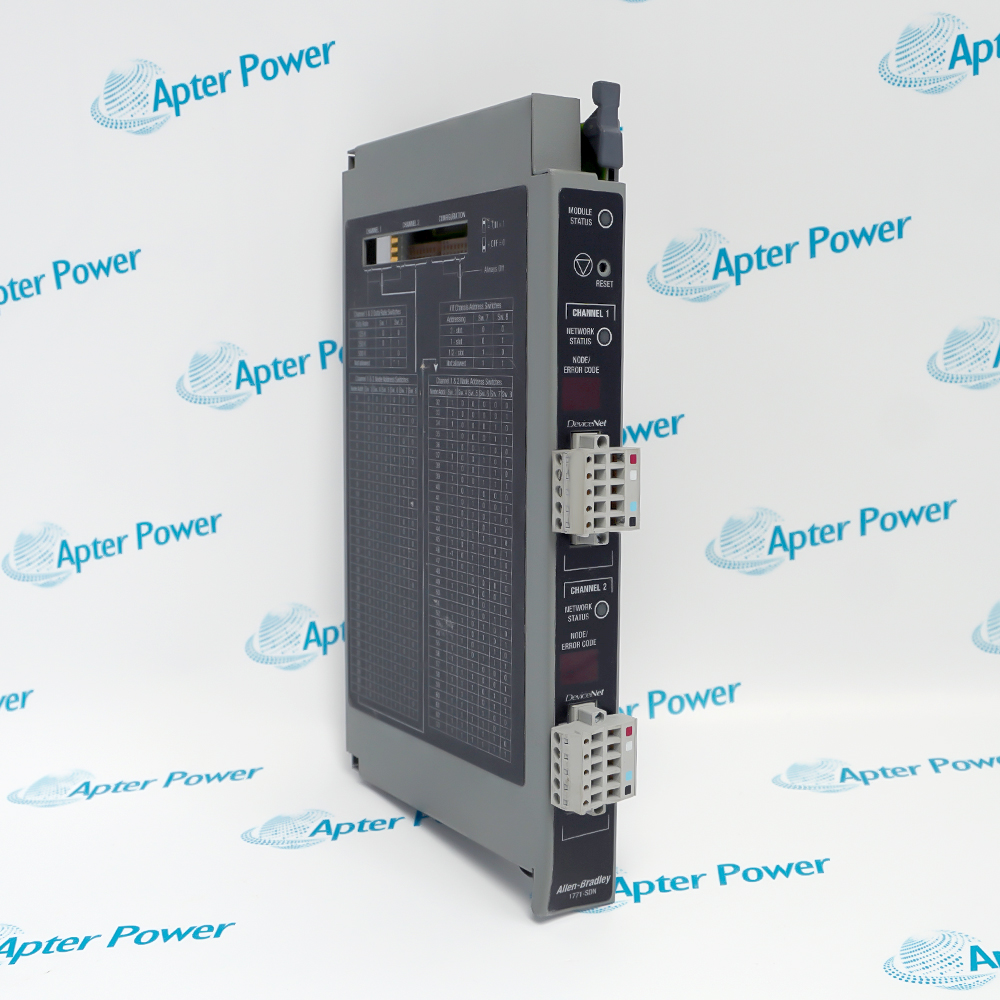

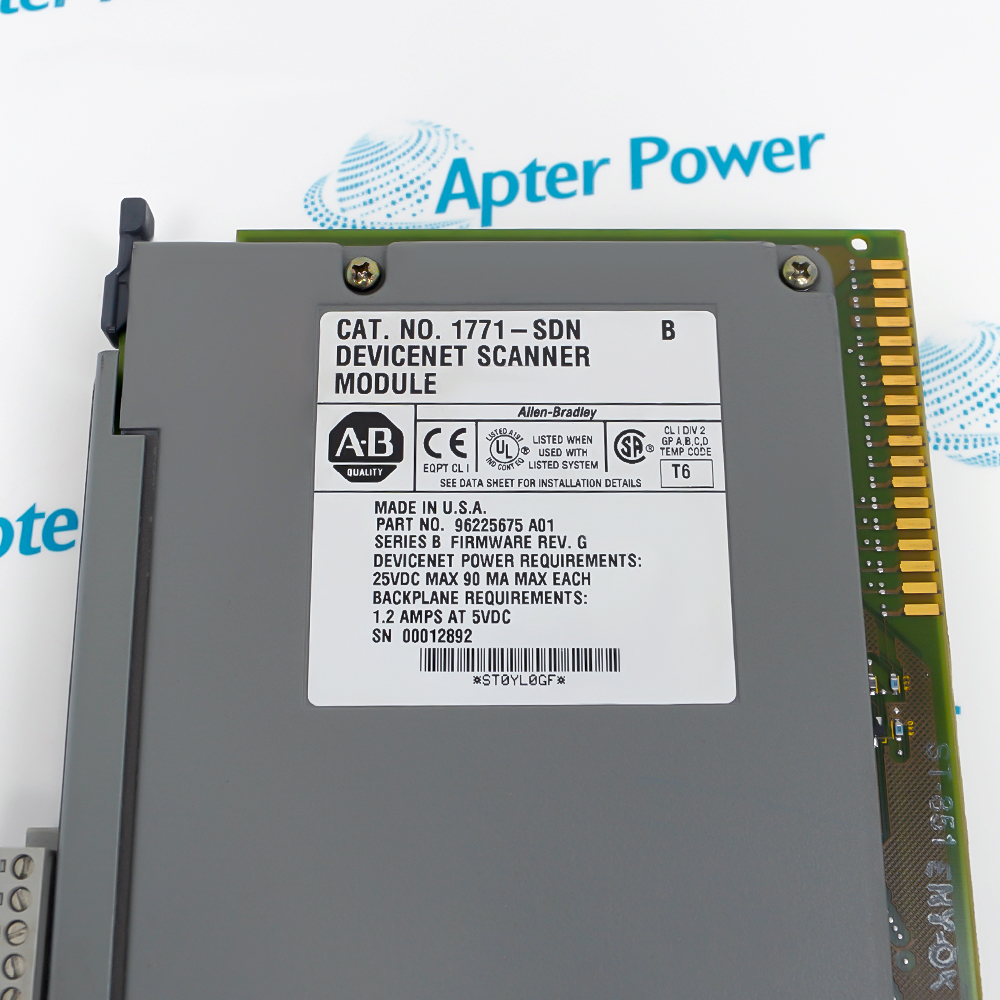

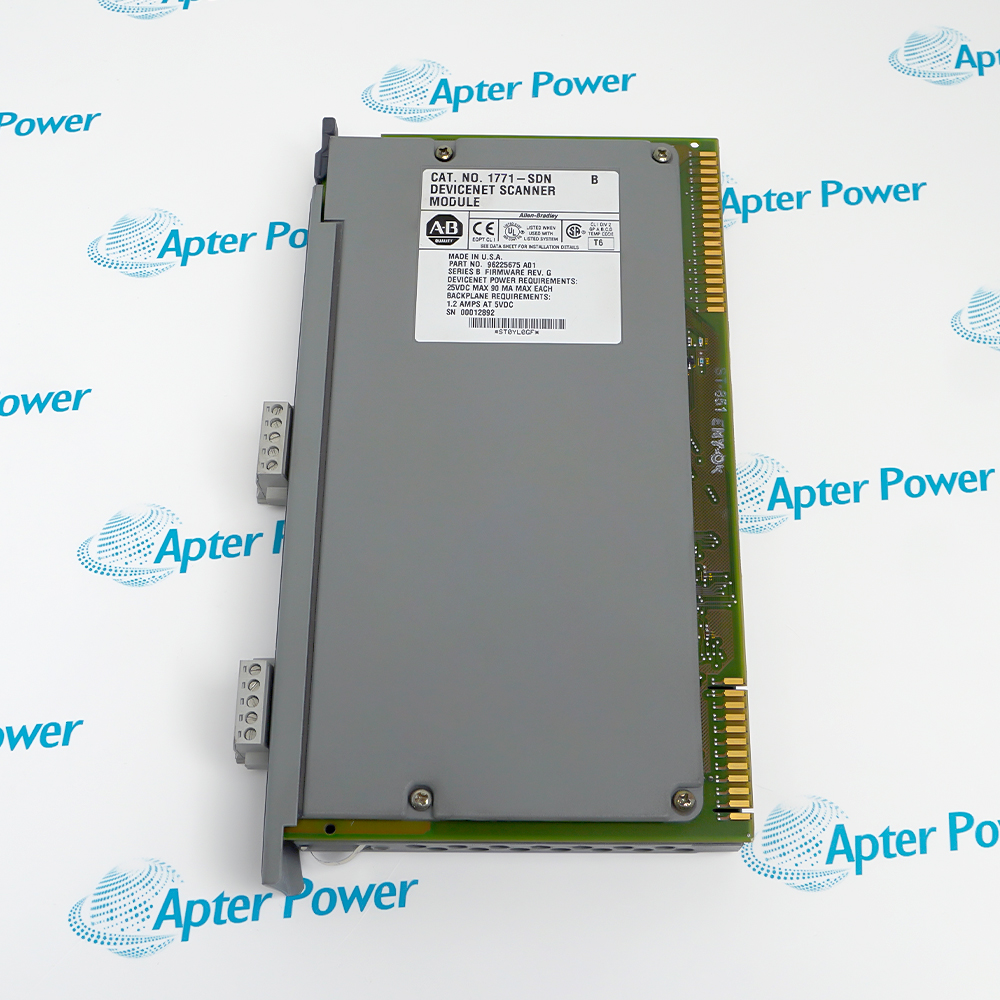

      DeviceNet Scanner Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Allen-Bradley 1771-SDN is a devicenet scanner module for the Bulletin 1771 PLC-5 communication platform. It interfaces a PLC-5 system with DeviceNet devices through two scanner channels and a configured scan list.

      Ask our team:

      Get a quick price for： 1771-SDN
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 1771-SDN

      Technical specifications for 1771-SDN

      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC Systems
      • Spare Part Number:
        1771-SDN
      • Estimated shipping dimensions:
        25.3x14.6x3cm
      • Weight:
        0.85 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        Bulletin 1771 PLC-5 communication platform
      • Network:
        DeviceNet
      • Controller platform:
        PLC-5 / Bulletin 1771
      • Scanner channels:
        2
      • Data rates:
        125, 250 or 500 kbit/s
      • I/O messaging:
        Polled, strobe, change-of-state and cyclic
      • Configuration:
        Channel-specific scan lists and data tables
      • Series compatibility:
        Series C supports Series A/B behavior subject to switch settings
      • Addressing:
        DeviceNet node address by channel
      • Status:
        Module and network diagnostic indicators
      • Replacement boundary:
        Preserve both channel maps and PLC data-table assignments
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Allen-Bradley 1771-SDN interfaces a PLC-5 system with DeviceNet devices through two scanner channels and a configured scan list.
      • Connects PLC-5 logic to DeviceNet
      • Provides two scanner channels
      • Supports four DeviceNet I/O messaging modes
      • Maintains channel scan lists and data-table maps

      1771-SDN operates with its documented companion hardware and configured system interfaces.

      Engineered applications include PLC-5 DeviceNet scanning, Dual-channel network service, Mixed messaging modes, Scanner replacement.

      Important Notice: Back up both 1771-SDN scan lists, data-table maps, node addresses and data rates. Confirm series and switch behavior before exchanging hardware.
