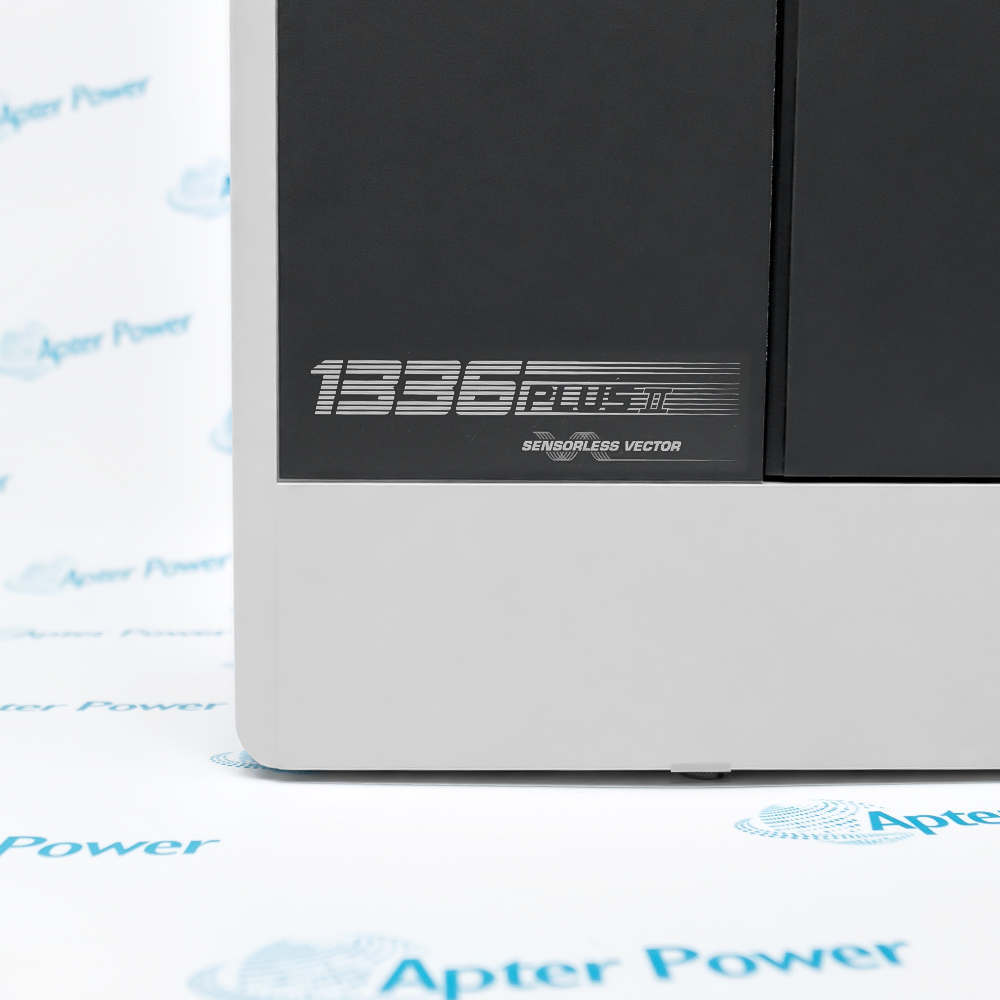

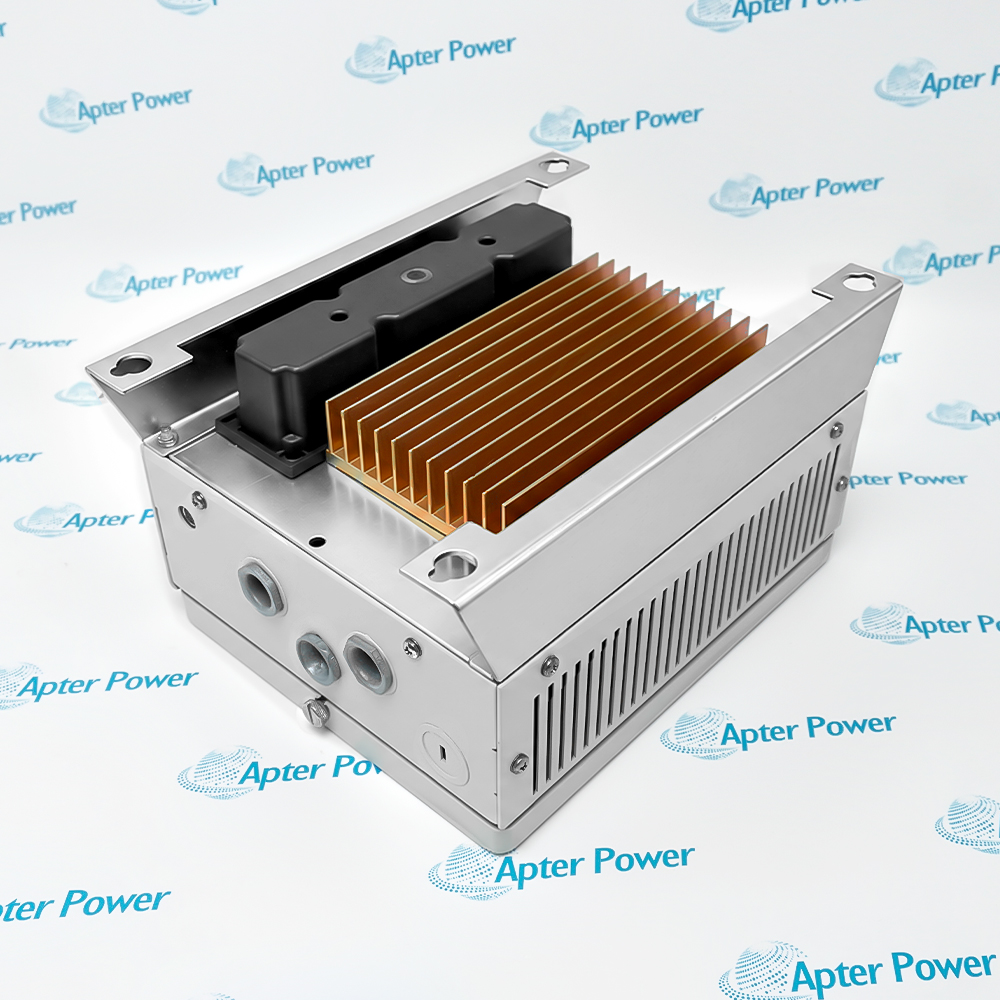

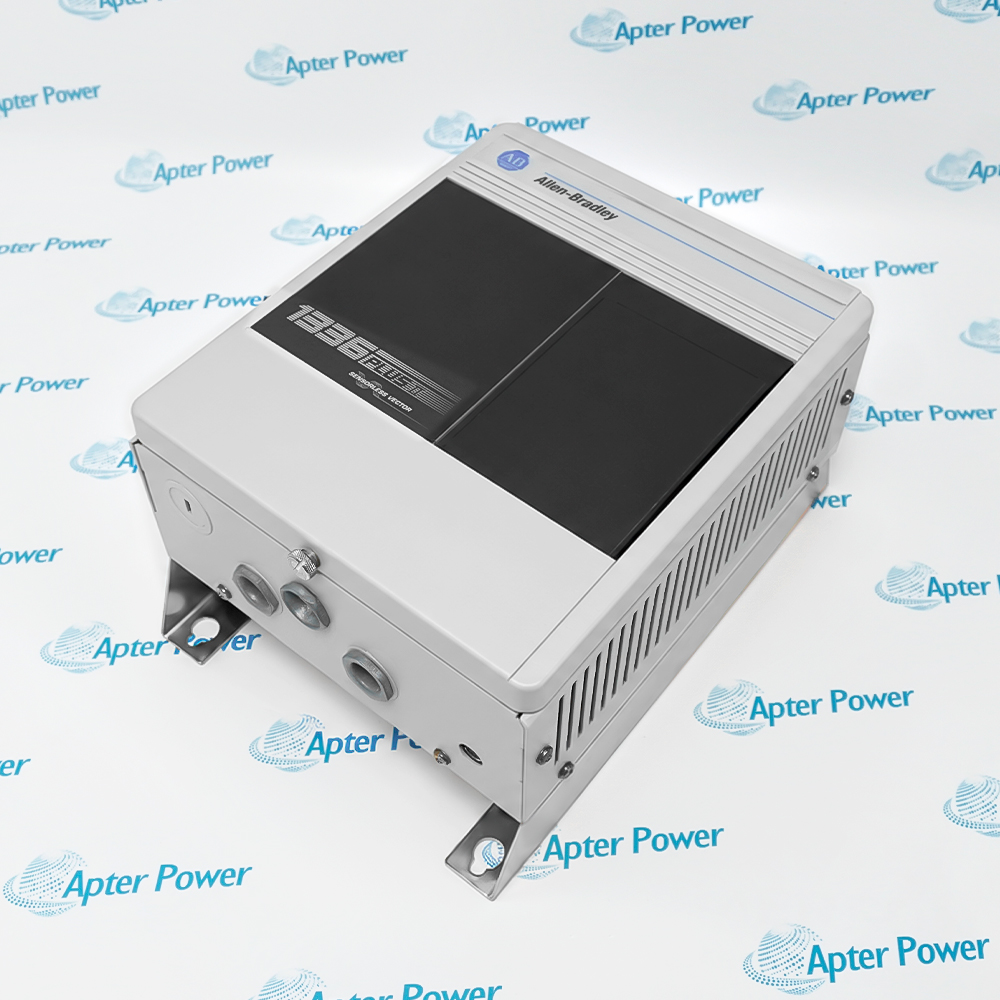

1336F-BRF10-AA-EN

Technical specifications for 1336F-BRF10-AA-EN

• Manufacturer:
  Allen-Bradley
• Product Category:
  Server Driver
• Spare Part Number:
  1336F-BRF10-AA-EN
• Estimated shipping dimensions:
  21.6x15.5x29cm
• Weight:
  4.76 kg
• Tariff Code:
  8537101190
• Counliy of origin:
  USA
• Product family:
  1336 PLUS II
• Drive function:
  Adjustable-frequency AC motor drive
• Frame:
  A1
• Input voltage code:
  BR: 380-480 V AC or 513-620 V DC
• Constant-torque power:
  0.75 kW / 1 HP
• Enclosure code:
  AA: IP20 / NEMA Type 1
• Language group:
  EN: English
• Control methods:
  Sensorless vector / V/Hz
• CT AC input apparent power:
  1.7-2.1 kVA
• CT AC input current:
  2.6 A
• CT output apparent power:
  1.7 kVA
• CT output current:
  2.1 A
• VT at 480 V: AC input:
  2.2 kVA / 2.8 A
• VT at 480 V: output:
  1.8 kVA / 2.3 A
• VT at 400 V: AC input:
  1.8 kVA / 2.8 A
• VT at 400 V: output:
  1.8 kVA / 2.55 A
• Full-rated AC supply:
  Three-phase; A/B-frame single-phase use requires 50% derating
• AC input frequency:
  47-63 Hz
• Input voltage tolerance:
  -10% of minimum / +10% of maximum
• Output frequency:
  0-400 Hz
• Output voltage:
  0 to rated voltage
• A/B-frame PWM carrier:
  2-8 kHz; drive rating is based on 4 kHz
• CT overload capability:
  150% for 1 minute
• VT overload capability:
  115% for 1 minute
• Acceleration / deceleration:
  Two independently programmable sets, 0-3600 s
• IP20 operating temperature:
  0 to 40 C
• Storage temperature:
  -40 to 70 C
• Relative humidity:
  5-95%, non-condensing
• Altitude without derating:
  1000 m maximum
• AC overvoltage / undervoltage trip:
  570 V / 280 V for the 380-480 V class
• DC bus overvoltage / undervoltage trip:
  810 V / 400 V
• Nominal DC bus voltage:
  648 V
• Drive Type parameter 61:
  Read-only value 8707 identifies BRF10
