      SDCS-PIN-H51

      DCS880 Measuring Board
      In Stock
      Ships by Wednesday, September 9
      Fast Shipping Available

      Product Describe：

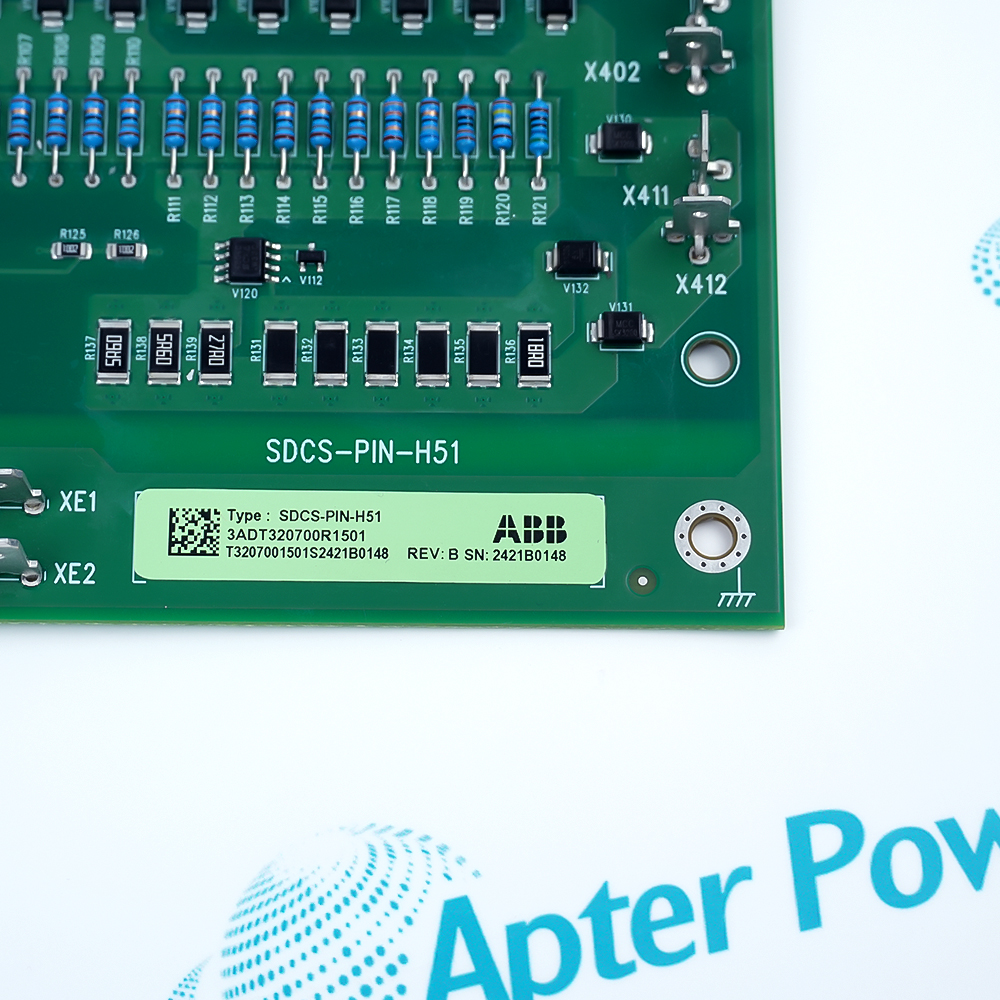

      ABB SDCS-PIN-H51 is the measuring board used in DCS880 converter frame sizes H6 through H8. It acquires armature-current and AC/DC-voltage measurement signals for the converter control system.

      Ask our team:

      Get a quick price for： SDCS-PIN-H51
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for SDCS-PIN-H51

      Technical specifications for SDCS-PIN-H51

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        3ADT320700R1501
      • Estimated shipping dimensions:
        30.5x10x3.2cm
      • Weight:
        0.15 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Spare part number:
        3ADT320700R1501
      • Board designation:
        SDCS-PIN-H51
      • Board function 1:
        Armature current measurement
      • Board function 2:
        AC/DC voltage measurement
      • Supported converter frame sizes:
        H6-H8
      • Board width:
        190 mm
      • Board height:
        305 mm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB SDCS-PIN-H51 is the measuring board used in DCS880 converter frame sizes H6 through H8. It acquires armature-current and AC/DC-voltage measurement signals for the converter control system.
      • Routes isolated power-stage measurements toward the control electronics
      • Interfaces with the H6-H8 converter power circuit
      • Supports current feedback used by the regulated armature loop
      • Provides voltage-measurement paths used by converter monitoring

      SDCS-PIN-H51 operates with SDCS-CON-H01 control board, H6-H8 power module, firing pulse transformer boards, converter measurement wiring.
      Typical engineered duties include DCS880 H6-H8 converter service, DCT880 power-controller maintenance, Armature feedback troubleshooting, Power-stage board replacement.

      Important Notice: Match SDCS-PIN-H51 and spare part 3ADT320700R1501 to the converter frame, board revision, connector layout and service documentation before installation.

      Apter Power SDCS-PIN-H51 Manuals and Guides

      Important Notice: The first document is an Apter Power SDCS-PIN-H51 model-specific technical reference. The second is a distinct document for installation, configuration or system engineering.

      SDCS-PIN-H51 DCS880 H6鈥揌8 converter service
      Routes isolated power-stage measurements toward the control electronics
      SDCS-PIN-H51 DCT880 power-controller maintenance
      Interfaces with the H6鈥揌8 converter power circuit
      SDCS-PIN-H51 Armature feedback troubleshooting
      Supports current feedback used by the regulated armature loop
      SDCS-PIN-H51 Power-stage board replacement
      Provides voltage-measurement paths used by converter monitoring
      Read the applicable ABB installation instructions before work. Verify SDCS-PIN-H51 and the installed-system configuration.
      1
      Discharge the DC circuit and prove isolation before opening the converter.
      2
      Record every connector designation before removing the board.
      3
      Use ESD controls and protect measurement connectors from contamination.
      4
      After replacement, verify current and voltage feedback before enabling the power stage.
      5
      Commission SDCS-PIN-H51 under controlled conditions and retain the completed functional-test record before release.

      Alternative Names

      Alternative Names

      3ADT320700R1501

      Technical notes

      Technical notes

      The ABB DCS880 hardware manual identifies SDCS-PIN-H51 as the H6–H8 measuring board. Service verification must cover its armature-current and AC/DC-voltage measurement paths before converter firing is enabled.

      FAQS

      • Which DCS880 frame sizes use SDCS-PIN-H51?
        ABB identifies SDCS-PIN-H51 for converter frame sizes H6 through H8.
      • What signals are handled by SDCS-PIN-H51?
        The board participates in armature-current measurement and AC/DC-voltage measurement for the converter power circuit.
      • How should 3ADT320700R1501 be checked against SDCS-PIN-H51?
        Verify the spare-part label, board designation, revision and connector layout against the installed converter record.
      • What must be isolated before removing SDCS-PIN-H51?
        Follow the DCS880 electrical-safety procedure, isolate all power sources and confirm the DC circuit is discharged.
      • Which connections must be recorded on SDCS-PIN-H51?
        Record connector identifiers, conductor positions and associated firing/control-board connections before disassembly.
      • How is SDCS-PIN-H51 commissioned after replacement?
        Check board seating and wiring, then verify plausible current and voltage feedback before allowing converter firing.
      • Can SDCS-PIN-H51 from another frame be fitted by appearance?
        No. Confirm the exact frame compatibility, spare number, revision and ABB hardware configuration.
      • What maintenance evidence should be retained for SDCS-PIN-H51?
        Retain converter identity, board revision, insulation/discharge checks, feedback results and the controlled start-up record.
