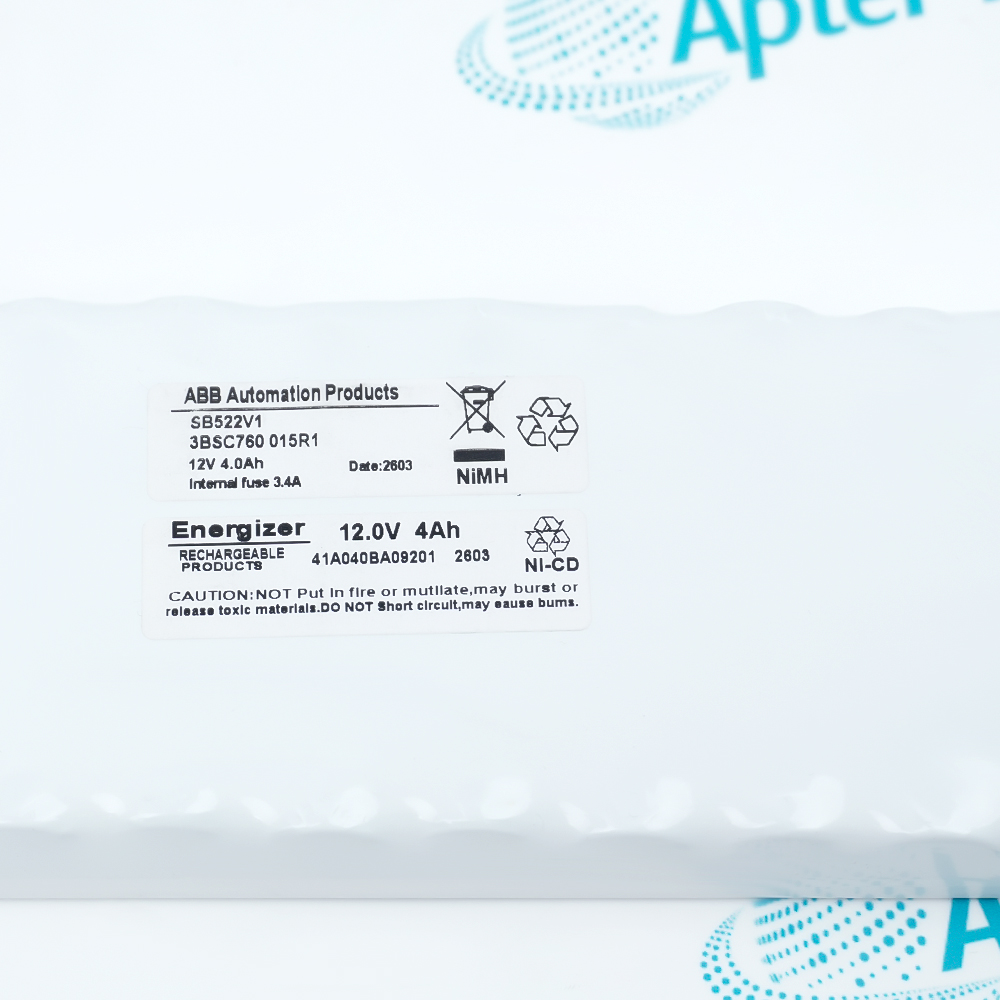

      ABB SB522V1-3BSC760015R1 (1)
      ABB SB522V1-3BSC760015R1 (2)
      ABB SB522V1-3BSC760015R1 (3)
      ABB SB522V1-3BSC760015R1 (1)
      ABB SB522V1-3BSC760015R1 (2)
      ABB SB522V1-3BSC760015R1 (3)
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      SB522V1 3BSC760015R1

      Battery Unit
      In Stock
      Ships by Saturday, October 24
      Fast Shipping Available

      Product Describe：

      ABB SB522V1 3BSC760015R1 is a rechargeable 12 V, 4 Ah NiMH battery unit for AC400 systems. It fits SB510 and SB511 assemblies and supplies backup current for RAM retention.

      Ask our team:

      Get a quick price for： SB522V1 3BSC760015R1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for SB522V1 3BSC760015R1

      Technical specifications for SB522V1 3BSC760015R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        SB522V1 3BSC760015R1
      • Estimated shipping dimensions:
        34x7x1.8cm
      • Weight:
        0.7 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • ABB type:
        SB522V1 NIMH 12, 4Ah
      • Product function:
        Rechargeable backup battery unit
      • System family:
        AC400
      • Battery chemistry:
        Nickel-metal hydride (NiMH)
      • Nominal voltage:
        12 V
      • Rated capacity:
        4 Ah
      • Compatible assemblies:
        SB510 and SB511
      • Backup role:
        RAM backup current supply
      • Internal fuse:
        3.4 A
      • Storage maintenance:
        Recharge spare units every six months
      • Specified spare charger:
        SB518, product ID 3BSC610071R1
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      The SB522V1 battery unit supports AC400 memory retention by providing a rechargeable backup source for the documented RAM supply path.
      • 12 V rechargeable NiMH battery
      • 4 Ah rated capacity
      • Fits SB510 and SB511
      • Backup current for RAM retention

      ABB identifies 3BSC760015R1 as the SB522V1 NIMH 12, 4Ah battery unit used in AC400 systems. The battery is charged and discharged through the approved charger arrangement and incorporates a 3.4 A internal fuse. Spare units in storage require periodic charging with the specified SB518 charger according to the manufacturer’s maintenance guidance.

      Important Notice: Confirm the complete SB522V1 3BSC760015R1 marking, AC400 host, SB510 or SB511 fit and approved charger arrangement before replacement.

      ABB SB522V1 3BSC760015R1 Manuals & Downloads
      ABB SB522V1 3BSC760015R1 Technical Reference (PDF)ABB SB522V1 3BSC760015R1 Installation & Commissioning Guide (PDF)

      The first document organizes exact-model technical evidence; the second provides a separate evidence-led installation and commissioning workflow.

      AC400 memory backup
      Backup current supply for RAM retention in an approved AC400 system configuration.
      SB510 assemblies
      Rechargeable battery support where the installed AC400 assembly is documented for SB510.
      SB511 assemblies
      Like-for-like battery service where SB511 and the charger path are confirmed.
      Controlled spare storage
      Maintained spare inventory recharged every six months with the specified SB518 charger.
      Read the applicable ABB instructions before work. Verify SB522V1 3BSC760015R1 and the installed system configuration before isolation or replacement.
      1
      Record the complete SB522V1 and 3BSC760015R1 markings before work.
      2
      Place the AC400 system and affected RAM-backed function in the approved maintenance state.
      3
      Confirm whether the installed host is SB510 or SB511 before replacement.
      4
      Inspect the battery, leads, connector and charger path for damage or contamination.
      5
      Use only the approved charger arrangement and observe battery polarity.
      6
      Do not bypass the internal fuse or substitute an unapproved battery chemistry.
      7
      Restore power and verify charging status and retained-memory behavior.
      8
      Record the installation date, maintenance interval and final acceptance results.

      Technical notes

      Technical notes

      ABB identifies 3BSC760015R1 as the SB522V1 NIMH 12, 4Ah battery unit used in AC400 systems. The battery is charged and discharged through the approved charger arrangement and incorporates a 3.4 A internal fuse. Spare units in storage require periodic charging with the specified SB518 charger according to the manufacturer’s maintenance guidance.

      FAQS

      • What is ABB SB522V1 3BSC760015R1?
        ABB SB522V1 3BSC760015R1 is a rechargeable 12 V, 4 Ah NiMH battery unit for AC400 systems.
      • Which assemblies accept the SB522V1 battery unit?
        The SB522V1 battery unit fits the ABB SB510 and SB511 assemblies.
      • What function does 3BSC760015R1 support?
        The 3BSC760015R1 battery unit supplies backup current for RAM retention in the approved AC400 configuration.
      • How is the SB522V1 charged during service?
        The SB522V1 is charged and discharged through the approved battery-charger arrangement in the installed system.
      • Which fuse is built into the ABB battery unit?
        The ABB battery unit incorporates a 3.4 A internal fuse.
      • How often should stored SB522V1 spares be recharged?
        ABB instructs users to recharge stored SB522V1 spare units every six months.
      • Which charger is specified for stored 3BSC760015R1 units?
        ABB specifies the SB518 charger, product ID 3BSC610071R1, for periodic charging of stored 3BSC760015R1 units.
      • What must be checked after SB522V1 replacement?
        The technician must verify charging status, retained-memory behavior and the documented installation record after replacing SB522V1.
