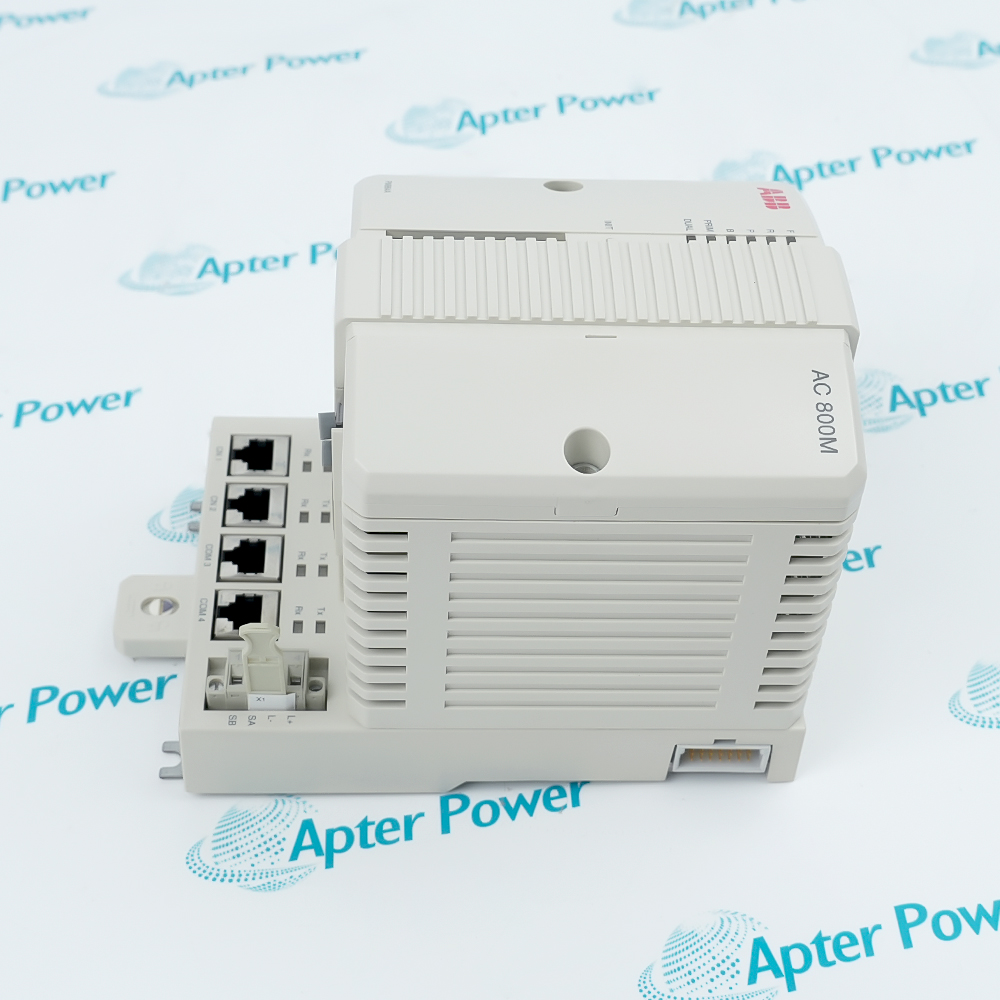

      ABB PM864AK01-3BSE018161R1
      ABB PM864AK01-3BSE018161R1
      ABB PM864AK01-3BSE018161R1
      ABB PM864AK01-3BSE018161R1
      ABB PM864AK01-3BSE018161R1
      ABB PM864AK01-3BSE018161R1
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      PM864AK01-3BSE018161R1

      Processor Unit Kit
      In Stock
      Ships by Saturday, October 24
      Fast Shipping Available

      Product Describe：

      ABB PM864AK01-3BSE018161R1 is an AC 800M processor-unit package built around the PM864A CPU. ABB documentation identifies the PM864A platform with a 96 MHz processor, 32 MB RAM and TP830 baseplate architecture.

      Ask our team:

      Get a quick price for： PM864AK01-3BSE018161R1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for PM864AK01-3BSE018161R1

      Technical specifications for PM864AK01-3BSE018161R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        PM864AK01-3BSE018161R1
      • Estimated shipping dimensions:
        19×12×13.5cm
      • Weight:
        0.95 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Product family:
        AC 800M
      • Package designation:
        PM864AK01
      • ABB article number:
        3BSE018161R1
      • Processor unit:
        PM864A
      • Microprocessor:
        MPC862 at 96 MHz
      • Memory:
        32 MB SDRAM and 2 MB flash PROM
      • Electrical ModuleBus:
        Up to 12 S800 I/O units

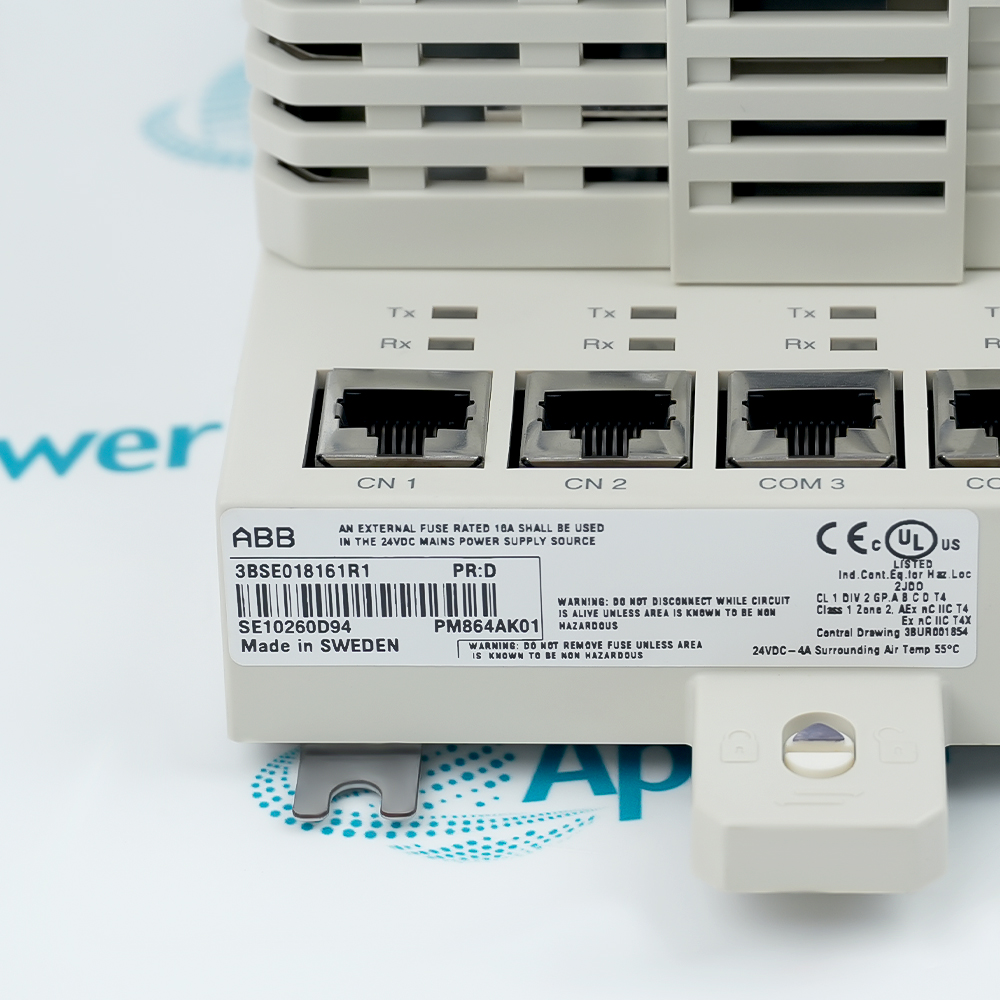

      • Ethernet ports:
        CN1 and CN2, IEEE 802.3 10BaseT
      • Serial ports:
        COM3 RS-232C with modem support; COM4 RS-232C service port
      • Power input:
        24 V nominal; 19.2 to 30 V DC
      • Power reservoir:
        5 ms internal reservoir for controlled power-down
      • Protection rating:
        IP20
      • PM864A internal-battery backup:
        Minimum 235 hours under the documented conditions
      • Redundancy interface:
        Redundancy Control Link
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      The PM864AK01 package supplies the PM864A controller core used in an AC 800M installation, with on-board Ethernet and serial interfaces plus electrical ModuleBus capacity.
      • MPC862 processor running at 96 MHz
      • 32 MB SDRAM with battery-backed memory support
      • Electrical ModuleBus connection for up to 12 S800 I/O units
      • Two 10BaseT Ethernet ports and two RS-232C serial ports

      Use the complete PM864AK01-3BSE018161R1 identity together with the installed TP830 baseplate, CEX-Bus termination, battery arrangement, firmware and approved Control Builder project. Back up the controller application and hardware configuration before replacement, then restore communications and affected I/O under a controlled acceptance plan.

      Important Notice: Confirm the complete ABB PM864AK01-3BSE018161R1 marking, installed firmware, project revision and cabinet records before replacement or commissioning.

      ABB PM864AK01-3BSE018161R1 Manuals & Downloads
      ABB PM864AK01-3BSE018161R1 Official Controller Hardware Excerpt (PDF)ABB PM864AK01-3BSE018161R1 Installation & Commissioning Guide (PDF)

      The first document reproduces applicable official manufacturer pages unchanged; the second provides a separate evidence-led installation and commissioning workflow.

      AC 800M process control
      Executes the approved control application in a documented AC 800M installation.
      S800 I/O integration
      Connects up to twelve S800 I/O units through the electrical ModuleBus.
      Controller communications
      Provides on-board Ethernet and serial service or modem interfaces.
      Controlled processor replacement
      Supports a record-led exchange followed by project, communication and I/O verification.
      Read the applicable ABB instructions before work. Verify PM864AK01-3BSE018161R1 and the installed system configuration before isolation or replacement.
      1
      Record the complete ABB PM864AK01-3BSE018161R1 identity before work.
      2
      Place the controlled process and controller in the approved maintenance state.
      3
      Back up the Control Builder project, application and hardware configuration.
      4
      Record the TP830 baseplate, CEX-Bus termination and connected communication units.
      5
      Isolate the controller supply and apply approved ESD controls before removal.
      6
      Verify firmware, Ethernet settings, serial assignments and battery arrangement.
      7
      Restore the approved application and hardware tree after installation.
      8
      Confirm diagnostics, communications and every affected I/O path before release.

      Technical notes

      Technical notes

      Use the complete PM864AK01-3BSE018161R1 identity together with the installed TP830 baseplate, CEX-Bus termination, battery arrangement, firmware and approved Control Builder project. Back up the controller application and hardware configuration before replacement, then restore communications and affected I/O under a controlled acceptance plan.

      FAQS

      • What does ABB PM864AK01-3BSE018161R1 identify?
        ABB PM864AK01-3BSE018161R1 identifies an AC 800M processor-unit package built around the PM864A controller.
      • Which processor is documented for ABB PM864AK01-3BSE018161R1?
        ABB documents an MPC862 microprocessor running at 96 MHz for the PM864A processor unit.
      • How much memory does ABB PM864AK01-3BSE018161R1 provide?
        The PM864A platform provides 32 MB of SDRAM and 2 MB of flash PROM for firmware storage.
      • How many S800 I/O units can ABB PM864AK01-3BSE018161R1 connect through electrical ModuleBus?
        The electrical ModuleBus supports as many as twelve S800 I/O units under the documented controller arrangement.
      • Which built-in communication ports are available on ABB PM864AK01-3BSE018161R1?
        The PM864A processor unit provides two 10BaseT Ethernet ports and two RS-232C serial ports.
      • What supply range applies to ABB PM864AK01-3BSE018161R1?
        ABB specifies a nominal 24 V DC supply with an allowed input range from 19.2 V DC to 30 V DC.
      • What must be backed up before ABB PM864AK01-3BSE018161R1 is replaced?
        Technicians must back up the approved Control Builder project, application, hardware tree, firmware record and network settings before replacement.
      • What confirms ABB PM864AK01-3BSE018161R1 commissioning?
        Successful commissioning requires normal controller diagnostics, restored communications and acceptance of every affected I/O and control function.
