      3BSE004725R1-DSTD196

      DSTD 196 Connection Unit
      In Stock
      Ships by Wednesday, September 9
      Fast Shipping Available

      Product Describe：

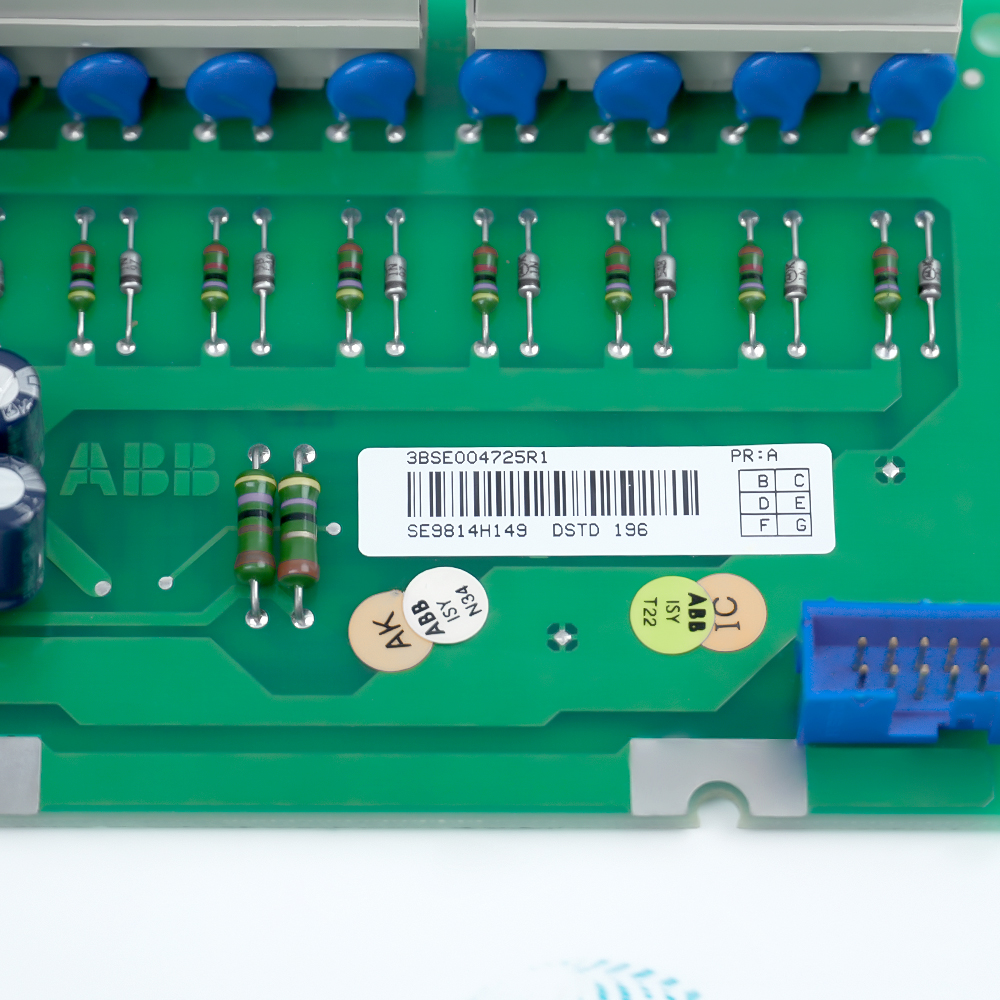

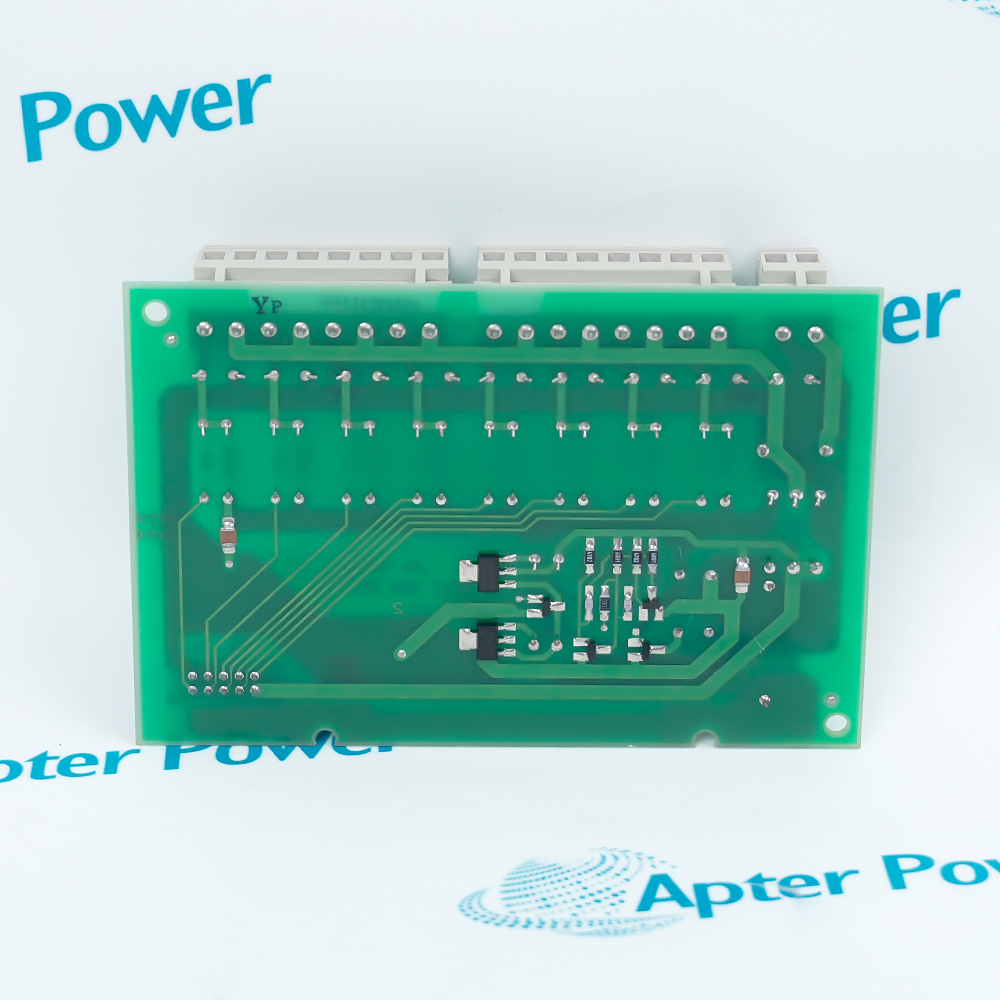

      ABB 3BSE004725R1-DSTD196 is an eight-channel DSTD 196 connection unit for S100 digital-input installations. It terminates 24 V DC field circuits and links the group to the associated DSDI input board.

      Ask our team:

      Get a quick price for： 3BSE004725R1-DSTD196
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 3BSE004725R1-DSTD196

      Technical specifications for 3BSE004725R1-DSTD196

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        3BSE004725R1
      • Estimated shipping dimensions:
        12x8x3.5cm
      • Weight:
        0.14 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • ABB article number:
        3BSE004725R1
      • Type designation:
        DSTD 196
      • Product type:
        Module termination unit
      • Termination channels:
        8
      • Field circuit voltage:
        24 V DC
      • Open-input circuit voltage:
        48 V DC
      • Input-set organization:
        4 x 8 channels
      • Companion input board:
        DSDI 110A / DSDI 110AV1
      • Connection cable:
        DSTK 226L3
      • Input acquisition:
        Scanning or interrupt
      • Pulse processing:
        Pulse extension
      • Time-tag resolution:
        1 ms
      • I/O family:
        S100 I/O
      • Functional class:
        Connection unit
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB 3BSE004725R1-DSTD196 is an eight-channel DSTD 196 connection unit for S100 digital-input installations. It terminates 24 V DC field circuits and links the group to the associated DSDI input board.
      • Terminates eight 24 V DC digital input circuits for one S100 I/O connection group
      • Interfaces field contacts with a DSDI 110A or DSDI 110AV1 digital input board
      • Supports scanning, interrupt, pulse-extension and time-tagged input acquisition
      • Connects the termination group to the input board through the documented DSTK cable assembly

      3BSE004725R1-DSTD196 installs with DSDI 110A or DSDI 110AV1 digital input board, DSTK 226L3 connection cable, 24 V DC field-contact circuits, S100 I/O cabinet termination hardware in an engineered ABB S100 I/O configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this dstd 196 connection unit.

      Important Notice: Confirm the complete 3BSE004725R1-DSTD196 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 3BSE004725R1-DSTD196 Manuals and Guides
      Apter Power 3BSE004725R1-DSTD196 Product Technical Reference PDFApter Power 3BSE004725R1-DSTD196 Installation and Verification PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      S100 digital-input field terminationTerminates eight 24 V DC digital input circuits for one S100 I/O connection group
      Advant Controller 450 process-status acquisitionInterfaces field contacts with a DSDI 110A or DSDI 110AV1 digital input board
      MasterPiece 200 discrete field monitoringSupports scanning, interrupt, pulse-extension and time-tagged input acquisition
      Legacy 800xA S100 I/O cabinet serviceConnects the termination group to the input board through the documented DSTK cable assembly
      Read the applicable ABB installation instructions before work. Verify 3BSE004725R1-DSTD196 and the installed ABB S100 I/O configuration.
      1Verify the full 3BSE004725R1-DSTD196 marking and the assigned eight-channel group before work.
      2Place the associated DSDI input set and field circuits in the approved maintenance state.
      3Isolate the field supply before disconnecting the 24 V DC termination conductors.
      4Record channel-to-terminal identity and the DSTK cable destination before removal.
      5Use ESD controls and protect the board connector and terminal hardware during handling.
      6Keep the documented 24 V DC connection-unit execution separate from other DSTD voltage variants.
      7Verify scan or interrupt acquisition, pulse extension and time-tag order after installation.
      8Prove all eight field states under controlled conditions before returning the input set to service.

      Technical notes

      Technical notes

      Connect the eight-channel termination group to the documented DSDI 110A or DSDI 110AV1 input board through the specified DSTK 226L3 cable. After replacement, verify channel identity, acquisition mode, pulse extension and 1 ms event ordering with controlled field transitions.

      FAQS

      • Which ABB input boards are paired with 3BSE004725R1-DSTD196?
        The documented S100 input set uses DSDI 110A or DSDI 110AV1 with the DSTD 196 connection unit.
      • How many field circuits does 3BSE004725R1-DSTD196 terminate?
        It provides one eight-channel connection group within the documented four-by-eight-channel S100 digital-input arrangement.
      • What field voltage is used with 3BSE004725R1-DSTD196?
        The ABB product guide identifies DSTD 196 for 24 V DC field circuits, with 48 V DC across an open input in the documented arrangement.
      • Which cable connects 3BSE004725R1-DSTD196 to the input board?
        The four-by-eight-channel set uses the DSTK 226L3 connection cable with the DSDI 110A or DSDI 110AV1 board.
      • Can 3BSE004725R1-DSTD196 inputs be acquired by interrupt?
        Yes. The documented input set supports scanning or interrupt acquisition together with pulse extension.
      • What should be recorded before replacing 3BSE004725R1-DSTD196?
        Record the eight terminal assignments, field-supply polarity, cable destination, DSDI board identity and the configured scan or interrupt behavior.
      • How is 3BSE004725R1-DSTD196 commissioned after installation?
        Exercise each controlled field contact and confirm channel identity, input-state change, pulse extension and time-tag order in the associated control system.
      • Can 3BSE004725R1-DSTD196 be replaced by another DSTD 19x unit?
        Only after matching the connection-unit voltage execution, channel arrangement, companion DSDI board, cable assembly and field-terminal design in the installed engineering documents.
