The 1MRK000284-AB is responsible for collecting binary (on/off) signals from switch positions, disconnector auxiliary contacts, buttons, and various sensors at the substation site, and transmitting these states completely through opto-isolation to the central processing unit of the protection device, thereby executing safety interlocking or fault protection logic.
Multiple function transformer protection ter minal in a compact design
Numerical microprocessor design with advanced facilities
Suitable for power transformers, generator transformer blocks and reactors
The numerical transformer terminal RET 521 is designed for fast and selective protection and control of two- and three-winding trans formers, auto-transformers, generator-trans former blocks and shunt reactors. The RET 521 has low requirements on the main Current Transformers and no interpos ing CTs are necessary. Flexibility is provided to cover for different applications in form of transformer size, vec tor groups, system neutral earthing and exten sion of protection functions according to the user’s preference. The selection of function ality from the modular hardware and software is made according to the requirements for selectivity and reliability in accordance to the user’s preference. Big and important trans formers such as generator-transformer blocks or large network transformers can use two RET 521 and include the modular protection software selectively to obtain redundancy. Smaller transformers and shunt reactors can include the modular software in one RET 521 and can also use the programmable logic to provide trip or indication for external protec tions (e.g. Buchholz). Thus providing a very compact design for protection and control.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB 1MRK000284-AB Binary Input Module, Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power & Substation Industry
Installed in large power transformer protection devices. It connects to temperature transmitters to collect real-time top oil temperature and winding temperature of the transformer, triggering alarms or starting cooling fans when limits are exceeded.
Gas & Petrochemical Industry
Used in the relay protection of power distribution systems in large petrochemical plants. It brings combustible gas concentration or process pipeline pressure signals from field explosion-proof transmitters into the non-electrical interlocking logic of the protection device for emergency shutdown.
Steel & Heavy Metallurgy Industry
In the protection of supply transformers for electric arc furnaces or blast furnaces, it collects the position signals of the On-Load Tap Changer (OLTC) to let the protection device accurately identify the current voltage regulation tap.
Marine and Offshore Vessels
Applied in medium-voltage electric propulsion systems for large LNG carriers or offshore drilling rigs. It collects insulation oil pressure and winding temperature of main generators or propulsion transformers.
Desalination Engineering
It collects pump bearing temperature or vibration signals converted to 4-20 mA as auxiliary non-electrical trip protection.
When using the 1MRK000284-AB module, live operation is strictly prohibited. Before replacing or plugging in the board, ensure that the protection device is completely powered off to prevent damage to the chip or false tripping. During installation, strictly correspond to the designated slot and complete the correct I/O mapping in the software. When wiring, use shielded cables and carefully check the voltage level and polarity of the secondary circuits on site. At the same time, a reasonable anti-jitter filter time must be configured in the system to ensure accurate signal acquisition and eliminate interference from external contact jitter.

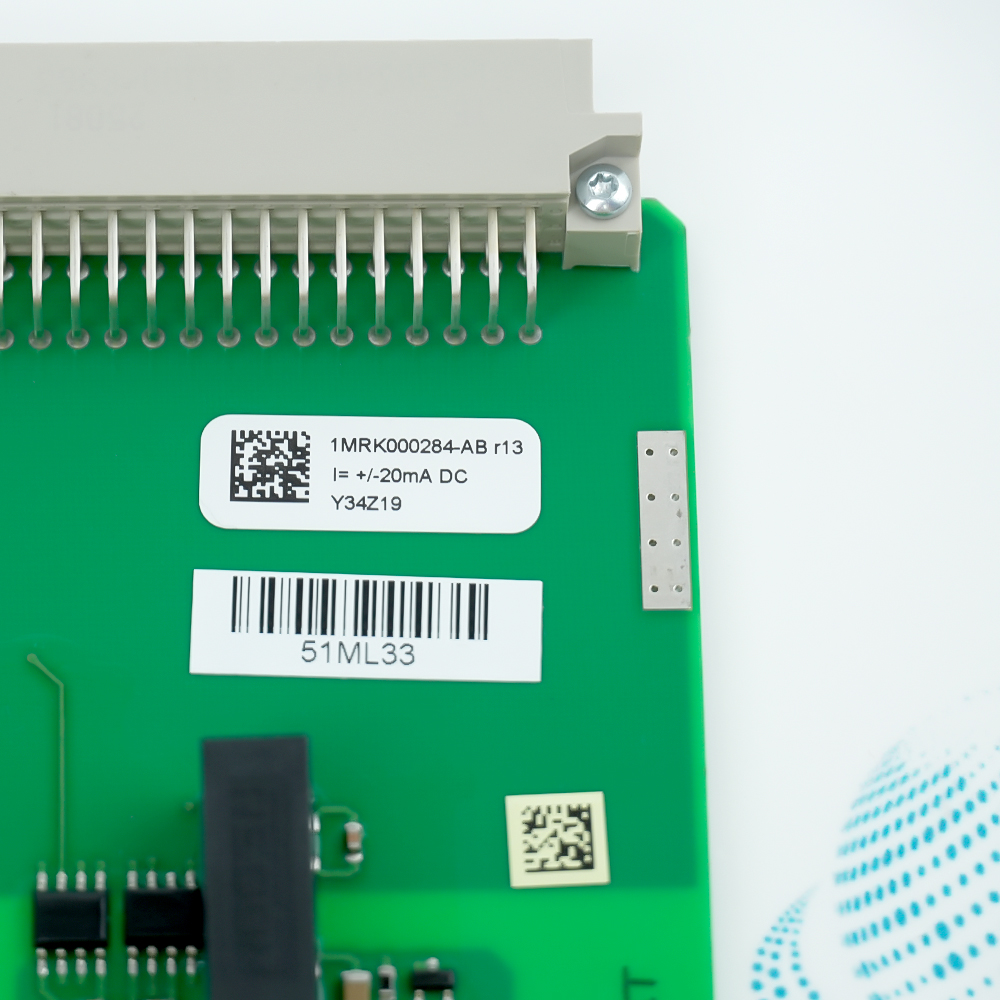

It is an mA analog input module manufactured by ABB (in some systems or third-party markets, it often refers to a digital input module).
How to use the 1MRK000284-AB?
When using this card, it must be inserted into the designated slot on the back panel of the relay protection device.
How many sensors can the 1MRK000284-AB connect?
It can connect to up to 6 transmitters that output standard DC current signals simultaneously.
What signal types does the 1MRK000284-AB support?
It natively supports industry-standard 0-20 mA or 4-20 mA DC current signals.
Which system does the 1MRK000284-AB belong to in ABB?
It belongs to ABB's classic relay protection and control system and is widely used in the older generation RET 521 transformer protection device. It is also compatible with some of the new generation Relion 670/650 series intelligent electronic devices (IEDs).
