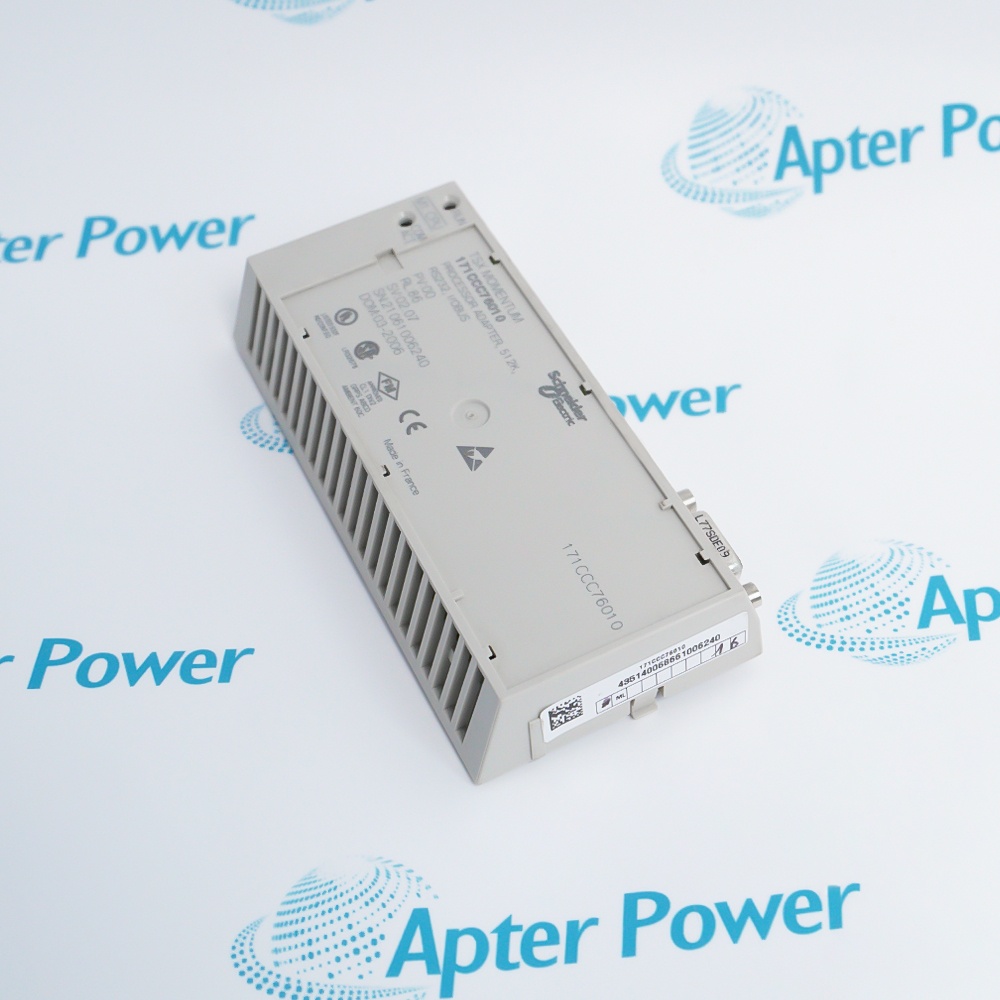

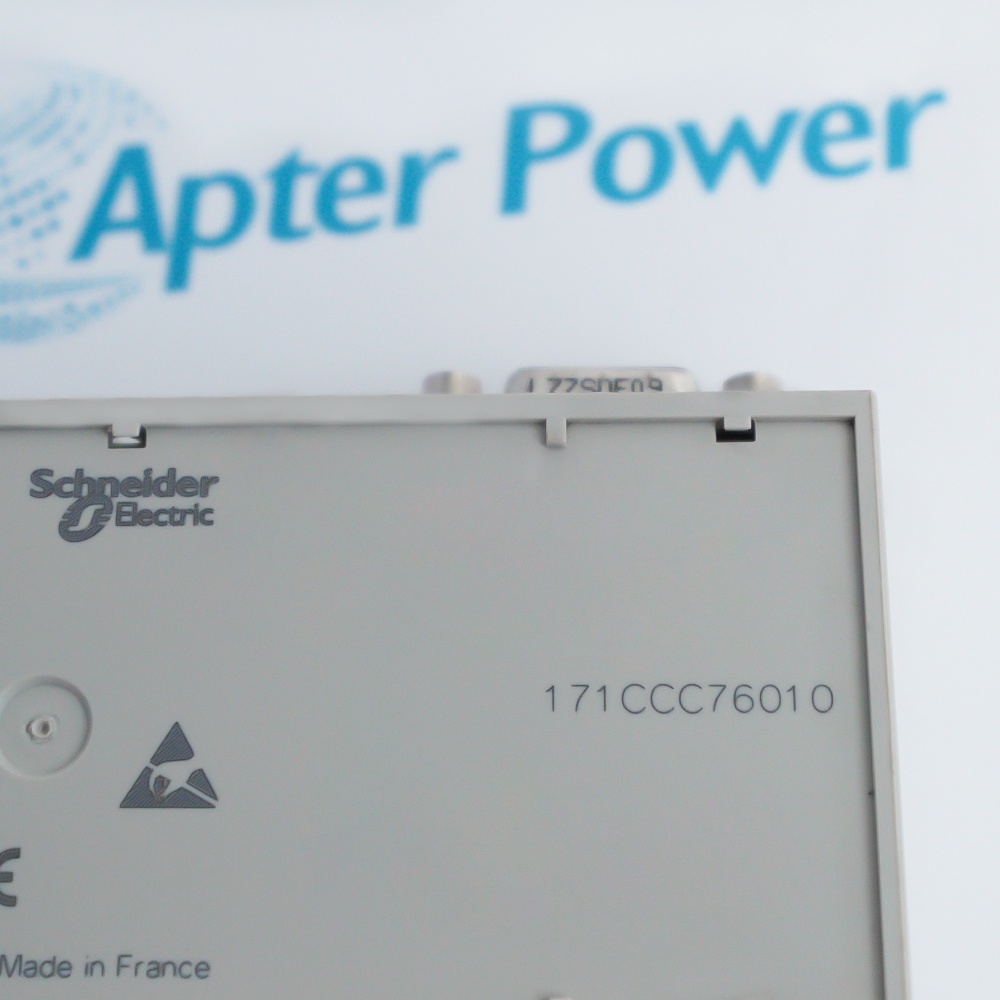

      Schneider Electric 171CCC76010
      Schneider Electric 171CCC76010
      Schneider Electric 171CCC76010
      Schneider Electric 171CCC76010
      Schneider Electric 171CCC76010
      Schneider Electric 171CCC76010
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      171CCC76010

      M1 Processor Adapter
      In Stock
      Ships by Sunday, October 18
      Fast Shipping Available

      Product Describe：

      Schneider Electric 171CCC76010 is a Modicon Momentum M1 processor adapter with one Modbus port and one I/O bus connection. Its 32 MHz processor execution coordinates the local Momentum I/O base and the retained application configuration.

      Ask our team:

      Get a quick price for： 171CCC76010
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 171CCC76010

      Technical specifications for 171CCC76010

      • Manufacturer:
        Schneider Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        171CCC76010
      • Estimated shipping dimensions:
        12.7x6.3x2.5cm
      • Weight:
        0.08 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        France
      • Controller family:
        Modicon Momentum
      • Adapter class:
        M1 processor adapter
      • Processor speed:
        32 MHz
      • Modbus ports:
        1
      • I/O bus connections:
        1
      • I/O-bus data limit:
        256 input words / 256 output words
      • IEC used-I/O limit:
        1408 points
      • Suggested replacement:
        171CBU78090
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      171CCC76010 combines controller execution, Modbus communication and local I/O-bus service in a Momentum assembly whose I/O base, project and communication parameters must stay synchronized.
      • Uses the Modicon Momentum M1 processor-adapter execution.
      • Provides one Modbus communication port.
      • Provides one local I/O-bus connection.
      • Uses a documented 32 MHz processor execution.

      Momentum control execution, modbus communication and i/o-bus coordination depends on the exact installed host, wiring, configuration and controlled acceptance record.

      Important Notice: Match 171CCC76010 to the complete installed record and verify every affected function before service release.

      Schneider Electric 171CCC76010 Manuals & Downloads
      Schneider Electric 171CCC76010 Technical Reference (PDF)Schneider Electric 171CCC76010 Installation & Commissioning Guide (PDF)

      The first document consolidates the verified product and system evidence; the second provides separate readiness, installation, verification and handover checks.

      Momentum machine control
      Executes a retained application on the matched I/O base.
      Modbus device integration
      Uses the documented serial communication port and parameters.
      Local I/O expansion
      Coordinates the retained Momentum I/O-bus map.
      Legacy processor renewal
      Preserves application, addressing and base-adapter identity during controlled replacement.
      Read the applicable product and site instructions before work. Verify 171CCC76010, the installed host and every connected interface before isolation or replacement.
      1
      Confirm 171CCC76010, the Momentum I/O base and the complete application before work.
      2
      Place the controlled equipment and outputs in the approved maintenance state.
      3
      Back up the program, Modbus parameters and I/O-bus map.
      4
      Record adapter orientation, base identity, cables and switch settings before separation.
      5
      Keep the documented I/O-bus word and used-point limits within the retained project.
      6
      Restore the Modbus port settings and every connected-device address.
      7
      Review processor, communication and I/O diagnostics after controlled startup.
      8
      Complete the machine-specific functional test before releasing 171CCC76010.

      Technical notes

      Technical notes

      Match 171CCC76010 to the exact Modicon Momentum position and preserve every documented connection, setting and companion component. After replacement, review diagnostics and verify Momentum control execution, Modbus communication and I/O-bus coordination under controlled conditions.

      FAQS

      • What is Schneider Electric 171CCC76010?
        It is a Modicon Momentum M1 processor adapter.
      • Which communication port does 171CCC76010 provide?
        The exact product page identifies one Modbus port.
      • How many I/O-bus connections does 171CCC76010 provide?
        It provides one I/O-bus connection.
      • What processor speed is listed for 171CCC76010?
        The exact product page identifies a 32 MHz execution.
      • What I/O-bus data limit applies to 171CCC76010?
        Schneider Electric documentation lists up to 256 input words and 256 output words on IObus.
      • What IEC used-I/O limit applies to 171CCC76010?
        The documented IEC processor limit is 1408 used I/O points.
      • What is the suggested replacement for 171CCC76010?
        The exact product page identifies 171CBU78090 as the suggested replacement.
      • How is 171CCC76010 commissioned?
        Verify the project, Modbus communication, I/O-bus diagnostics and machine function under controlled conditions.
