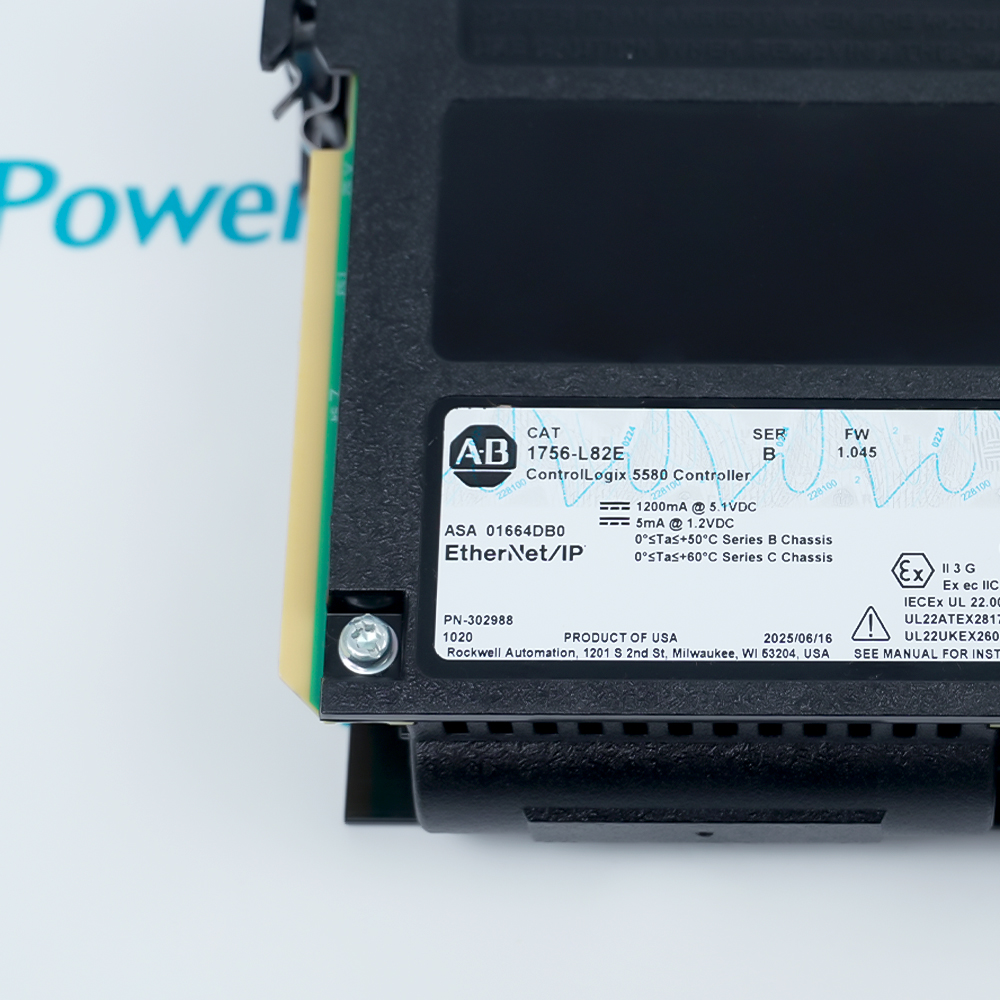

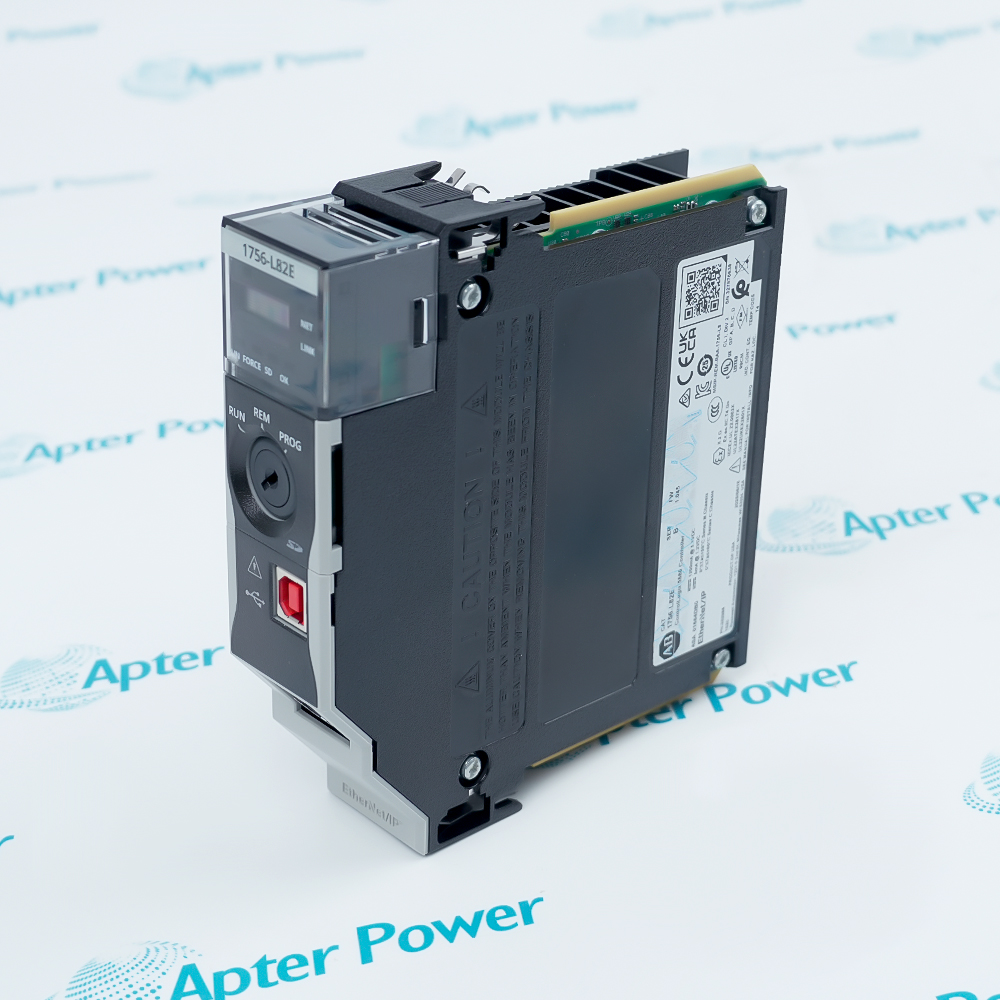

1756-L82E-B

Technical specifications for 1756-L82E-B

• Manufacturer:
  Allen-Bradley
• Product Category:
  PLC Systems
• Spare Part Number:
  1756-L82E-B
• Estimated shipping dimensions:
  3.5x13.8x14.5cm
• Weight:
  0.4 kg
• Tariff Code:
  8537101190
• Counliy of origin:
  USA
• Manufacturer:
  Allen-Bradley / Rockwell Automation
• Catalog identity:
  1756-L82E, Series B
• Product family:
  ControlLogix 5580
• Product type:
  Chassis-based programmable automation controller
• User memory:
  5 MB
• Controller tasks:
  32 continuous, periodic and event tasks
• Programs per task:
  1000 maximum
• USB port:
  One USB 2.0 full-speed port; 12 Mbps
• USB use:
  Temporary local programming, configuration, firmware update and online edits
• Embedded Ethernet:
  One 10/100/1000 Mbps EtherNet/IP port
• EtherNet/IP nodes:
  80 maximum with Logix Designer v29; 175 maximum with v30 or later
• Programming languages:
  Relay ladder, structured text, function block and sequential function chart
• Digital I/O maximum:
  128,000
• Analog I/O maximum:
  4,000
• Total I/O maximum:
  128,000
• Nonvolatile memory:
  2 GB 1784-SD2 Secure Digital card, preinstalled
• Energy storage module:
  Embedded and nonremovable
• Number of power cycles:
  80,000
• Current draw at 1.2 V DC:
  5.0 mA
• Current draw at 5.1 V DC:
  1.20 A
• Power dissipation:
  6.2 W
• Thermal dissipation:
  21.2 BTU/h
• Isolation voltage:
  50 V continuous, basic insulation; USB/backplane/Ethernet interfaces
• Module location:
  ControlLogix chassis, any slot
• Enclosure type:
  Open-style equipment
• Ambient operating temperature:
  0-60 deg C in Series C chassis; 0-50 deg C in Series B chassis
• Nonoperating temperature:
  -40 to +85 deg C
• Relative humidity:
  5-95%, noncondensing
• Operating vibration:
  2 g at 10-500 Hz
• Operating shock:
  30 g
• Nonoperating shock:
  30 g
• Temperature code:
  T4
