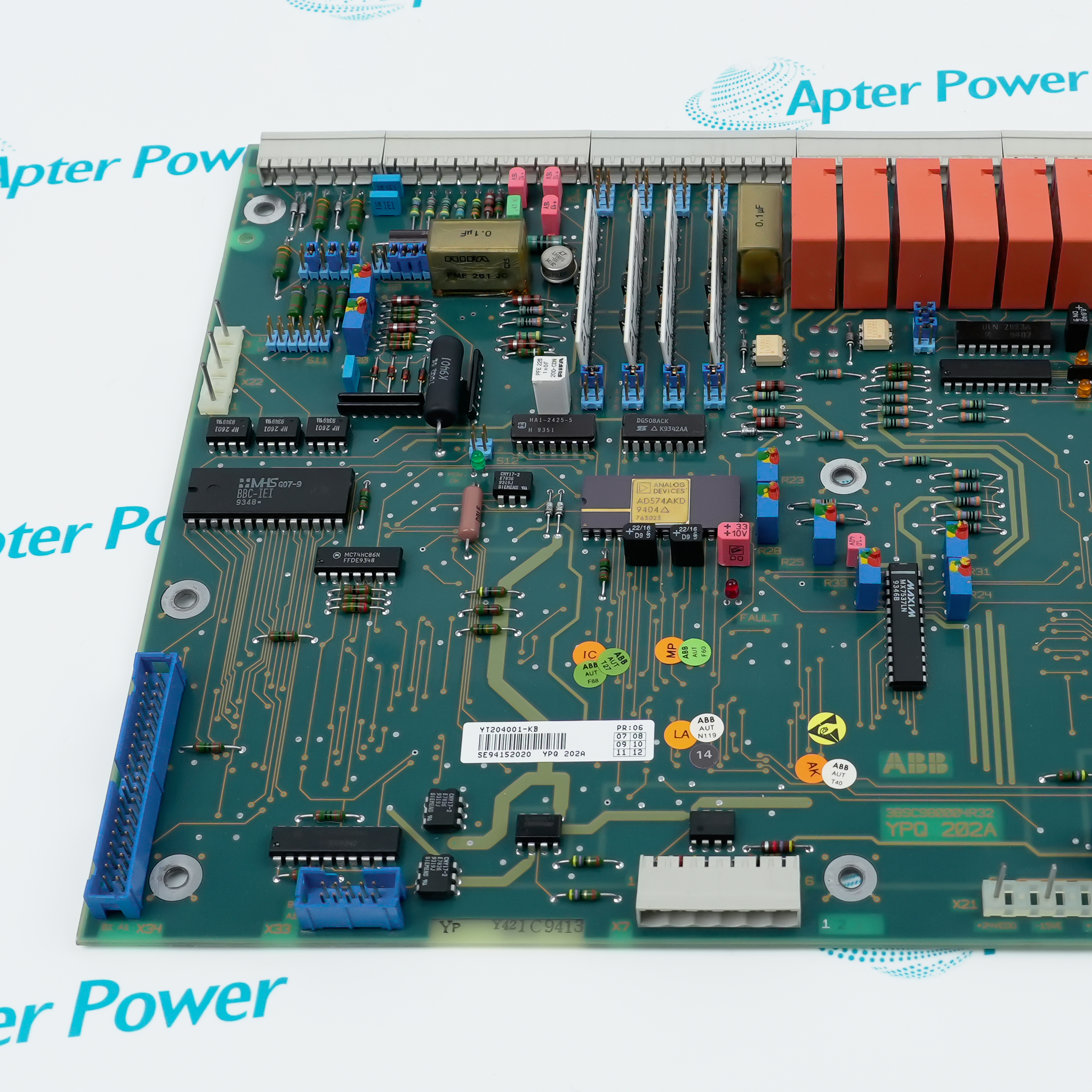

      ABB YPQ202A-YT204001-KB (1)

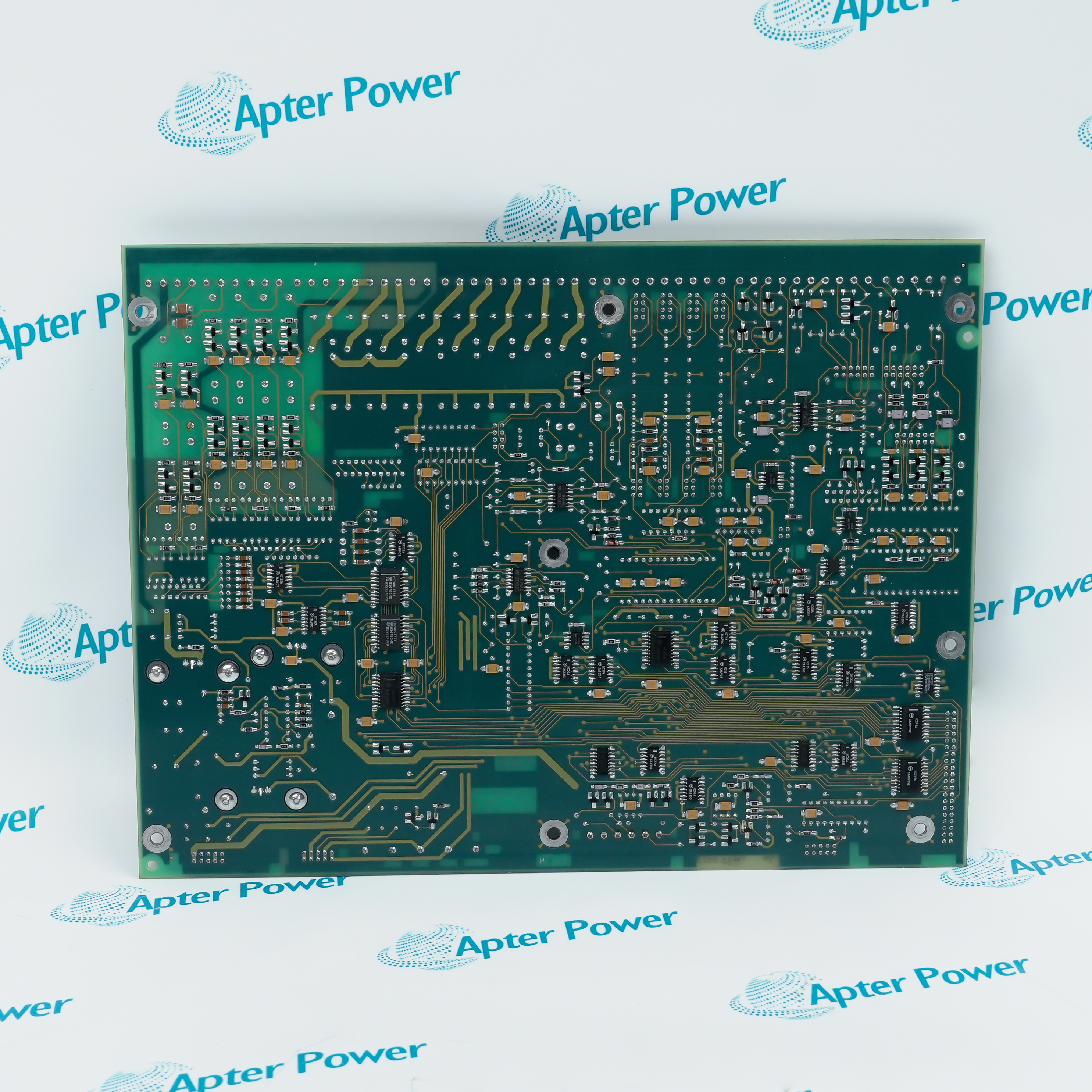

      ABB YPQ202A-YT204001-KB (2)
      ABB YPQ202A-YT204001-KB (3)
      ABB YPQ202A-YT204001-KB (1)
      ABB YPQ202A-YT204001-KB (2)
      ABB YPQ202A-YT204001-KB (3)
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      YPQ202A YT204001-KB

      I/O Interface Board
      In Stock
      Ships by Saturday, October 24
      Fast Shipping Available

      Product Describe：

      ABB YPQ202A YT204001-KB is an I/O interface board for the TYRAK converter-control system. It connects external hardware with program-dependent digital, analog and feedback services in the installed control architecture.

      Ask our team:

      Get a quick price for： YPQ202A YT204001-KB
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for YPQ202A YT204001-KB

      Technical specifications for YPQ202A YT204001-KB

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        YPQ202A YT204001-KB
      • Estimated shipping dimensions:
        30.3x23x3cm
      • Weight:
        0.62 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Product family:
        TYRAK converter-control system
      • Component type:
        I/O interface board
      • System context:
        ABB TYRAK converter-control assembly
      • Core control-board set:
        YPQ201 processor, YPR201 memory and YPQ202 I/O board
      • Interface role:
        Connection and conversion between external hardware and control software
      • Signal services:
        Digital, analog and feedback services according to the installed control program
      • Configuration rule:
        Channel allocation and board settings are control-program specific
      • Feedback handling:
        TYRAK documents show YPQ202 involvement in pulse or tacho feedback arrangements
      • Test support:
        Supported TYRAK programs provide system-test functions through the control architecture
      • Replacement boundary:
        Retain the complete YPQ202A / YT204001-KB identity and installed project record
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB YPQ202A YT204001-KB is an I/O interface board used in a TYRAK converter-control assembly, where the YPQ202 board family connects external signals with the control software.
      • Interfaces external hardware with the TYRAK control software
      • Works with the YPQ201 processor and YPR201 memory board
      • Carries program-dependent digital, analog and feedback services
      • Requires the installed TYRAK program and wiring record to be preserved

      YPQ202A YT204001-KB operates with external sensors, commands and actuator circuits, YPQ202A YT204001-KB I/O interface board, YPQ201 processor and YPR201 memory, the installed TYRAK control program.

      Engineered applications include Converter signal interface, Digital and analog I/O, Feedback processing, Exact-board replacement.

      Important Notice: Treat the exact YPQ202A and YT204001-KB markings as one article identity. Channel counts, jumper positions, terminal allocation and feedback use must be taken from the installed TYRAK program and project documentation, not from a different YPQ202 application.

      YPQ202A YT204001-KB Manuals & Downloads
      YPQ202A YT204001-KB Technical Reference (PDF)YPQ202A YT204001-KB Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Converter signal interface
      Connects external converter-control signals to the TYRAK control electronics.
      Digital and analog I/O
      Supports the signal groups assigned by the installed control program and project wiring.
      Feedback processing
      Participates in documented pulse or tacho feedback arrangements when that program uses them.
      Exact-board replacement
      Restores the YPQ202A / YT204001-KB position without borrowing channel data from another TYRAK program.
      Read the applicable ABB instructions before work. Verify YPQ202A YT204001-KB, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Record both YPQ202A and YT204001-KB markings before removing the board.
      2
      Isolate the converter and prove every control-power and field-signal circuit de-energized.
      3
      Photograph and label each connector, terminal group, shield and jumper position before disconnection.
      4
      Use grounded ESD controls and protect the board edge, contacts and mounted components.
      5
      Confirm the companion YPQ201 processor, YPR201 memory and installed TYRAK program identity.
      6
      Do not copy channel assignments or jumper settings from another YPQ202 control program.
      7
      Restore wiring and board seating exactly, then check converter diagnostics before enabling power circuits.
      8
      Prove every assigned digital, analog and feedback path and retain the final acceptance record.

      Alternative Names

      Alternative Names

      YPQ202A YT204001-KB

      Technical notes

      Technical notes

      Treat the exact YPQ202A and YT204001-KB markings as one article identity. Channel counts, jumper positions, terminal allocation and feedback use must be taken from the installed TYRAK program and project documentation, not from a different YPQ202 application.

      FAQS

      • What identifies ABB YPQ202A YT204001-KB during replacement?
        Use both visible identities together: YPQ202A is the board designation and YT204001-KB is the ordering identity. Record both before removal.
      • What job does ABB YPQ202A YT204001-KB perform in a TYRAK assembly?
        It forms the I/O interface between external hardware and the converter-control software, including the signal services assigned by the installed program.
      • Which companion boards operate with ABB YPQ202A YT204001-KB?
        The basic TYRAK control-board set places the YPQ202 I/O board with a YPQ201 processor and YPR201 memory module.
      • Can fixed channel counts be assumed for ABB YPQ202A YT204001-KB?
        No. ABB TYRAK documents allocate YPQ202 channels differently for different control programs, so the installed program and project drawings govern.
      • Why must ABB YPQ202A YT204001-KB jumper positions be recorded?
        Some TYRAK applications use YPQ202 settings for feedback adjustment or other program-specific functions; an unrecorded change can alter the configured signal path.
      • What wiring evidence should be retained for ABB YPQ202A YT204001-KB?
        Keep connector photographs, terminal labels, shields, jumper positions and the controlled I/O list so each external circuit returns to the same assignment.
      • How should ABB YPQ202A YT204001-KB be checked after installation?
        First confirm board seating and diagnostics, then prove each assigned digital, analog and feedback path under the approved TYRAK test procedure.
      • What substitutions should be avoided for ABB YPQ202A YT204001-KB?
        Do not replace it by matching only the YPQ202 family name or by copying another program's channel table; the complete article and project configuration must agree.
