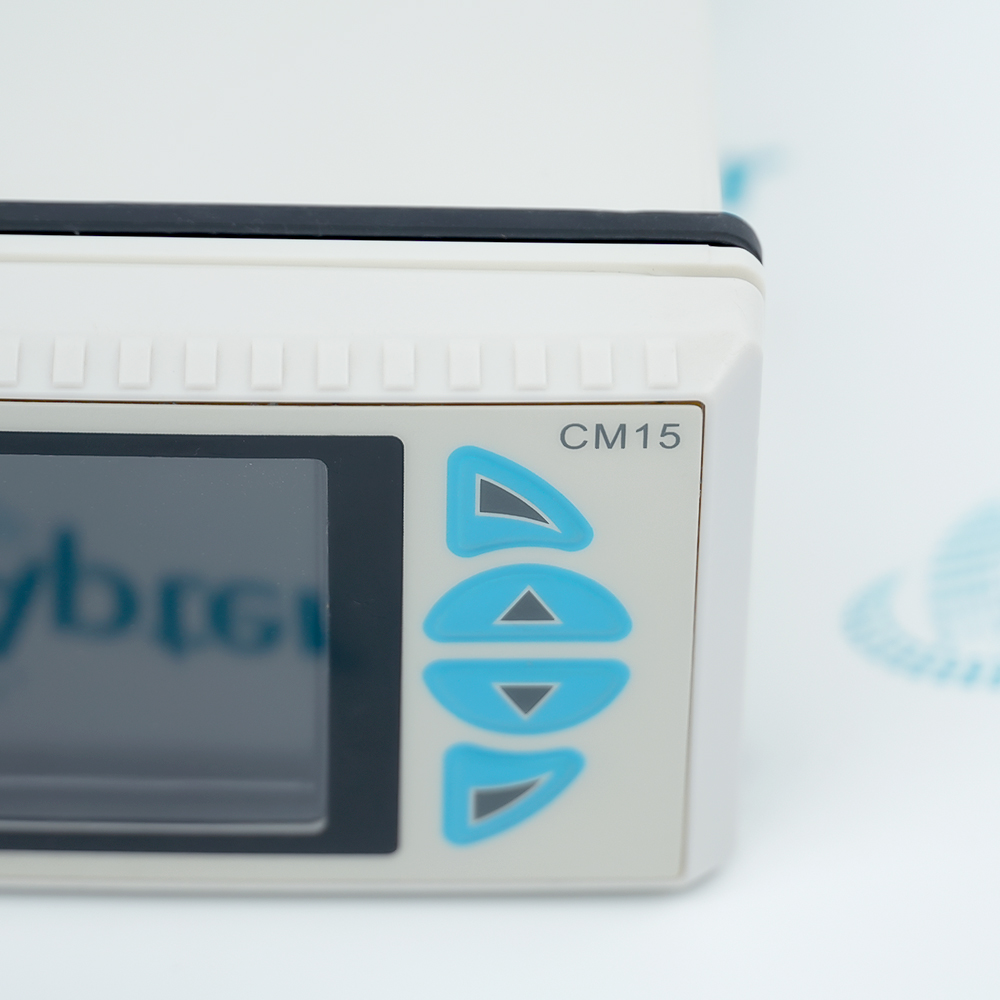

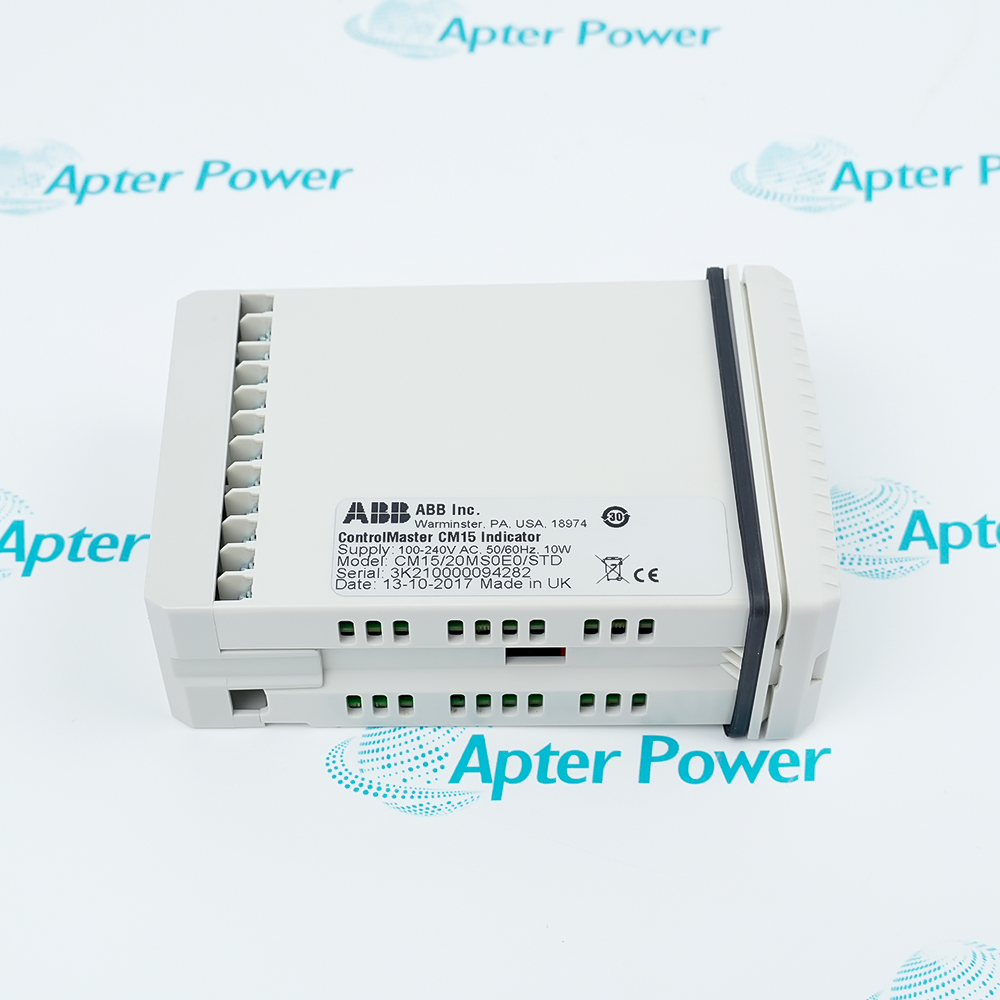

The CM15/20MS0E0/STD is a ControlMaster CM15 general-purpose process indicator manufactured by ABB. It is a 1/8 DIN size industrial display instrument primarily used for displaying, monitoring, and controlling various industrial process parameters.
Comprehensive Extensibility
Direct Flowmeter Telemetry
Universal Mains Power (STD Option)
The ControlMaster CM15 is a feature-packed, 1/8 DIN, universal process indicator. A crystal-clear, full-color, TFT display shows operators exactly the information they need to know and provides operation and configuration menus in full text making the CM15 intuitive to use and very quick to install and commission. Available as a basic indication-only model, or enhanced through plug and play function keys and I/O modules, the CM15 offers totalization, level, math, logic, counter and alarm functions making it extremely flexible and able to solve many demanding application requirements.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB CM15/20MS0E0/STD UNIVERSAL PROCESS INDICATOR Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Plastics & Rubber
Monitors barrel zone temperatures and melt pressures to ensure uniform polymer extrusion quality.
Metallurgy
Visualizes furnace temperatures and operates safety interlocks for industrial annealing or tempering ovens.
Chemical Batch
Measures exothermic reaction temperatures and tracks reactant addition via specialized math calculation blocks.
Pulp & Paper
Oversees steam-heated drying cylinder temperatures to prevent paper tearing or moisture non-uniformity.
Marine Boiler
Indication of heavy fuel oil (HFO) pre-heating temperatures and boiler water levels on sea-going vessels.
Oil & Gas
Monitors tank bottom temperatures and continuous hydrostatic level indications for inventory control.
When installing the CM15/20MS0E0/STD indicator, ensure the panel cutout matches the 1/8 DIN template and the gasket is sealed to maintain IP66 protection. Technicians must precisely wire the 20MS high-density card (2 inputs, 2 analog outputs, 2 digital I/Os, 4 relays) to avoid hardware damage. For RS485 Modbus serial communication, ensure proper shielding against noise and verify that station ID, baud rate, and parity align with the master controller. Lastly, ensure the 90–264V AC STD power supply is completely stable before performing any sensor calibrations via the TFT menus to prevent configuration data corruption.
It is a high-performance, 1/8 DIN universal process indicator and display module manufactured by ABB, designed to monitor and visualize field parameters such as temperature, pressure, flow, and level.
How to use and program the CM15/20MS0E0/STD indicator?
Technicians mount it onto a control panel front cutout and navigate its full-color TFT display using the front-panel keys. Advanced logic configurations can also be programmed via a PC connection using ABB's ConfigPilot software.
What industrial communication protocols does the CM15/20MS0E0/STD support?
It features integrated RS485 Modbus RTU serial communication, allowing it to seamlessly export process variables and alarm statuses to upstream PLCs, SCADA, or DCS networks.
What are the power supply requirements for the CM15/20MS0E0/STD?
The "STD" suffix indicates the standard wide-range industrial power supply, which operates safely on 90V to 264V AC at 50/60 Hz.
What environmental protection class does the CM15/20MS0E0/STD offer?
The front panel has an IP66 and NEMA 4X hose-down protection rating, making it highly resilient against fine dust, chemical fumes, and high-pressure water spray inside harsh plants.
