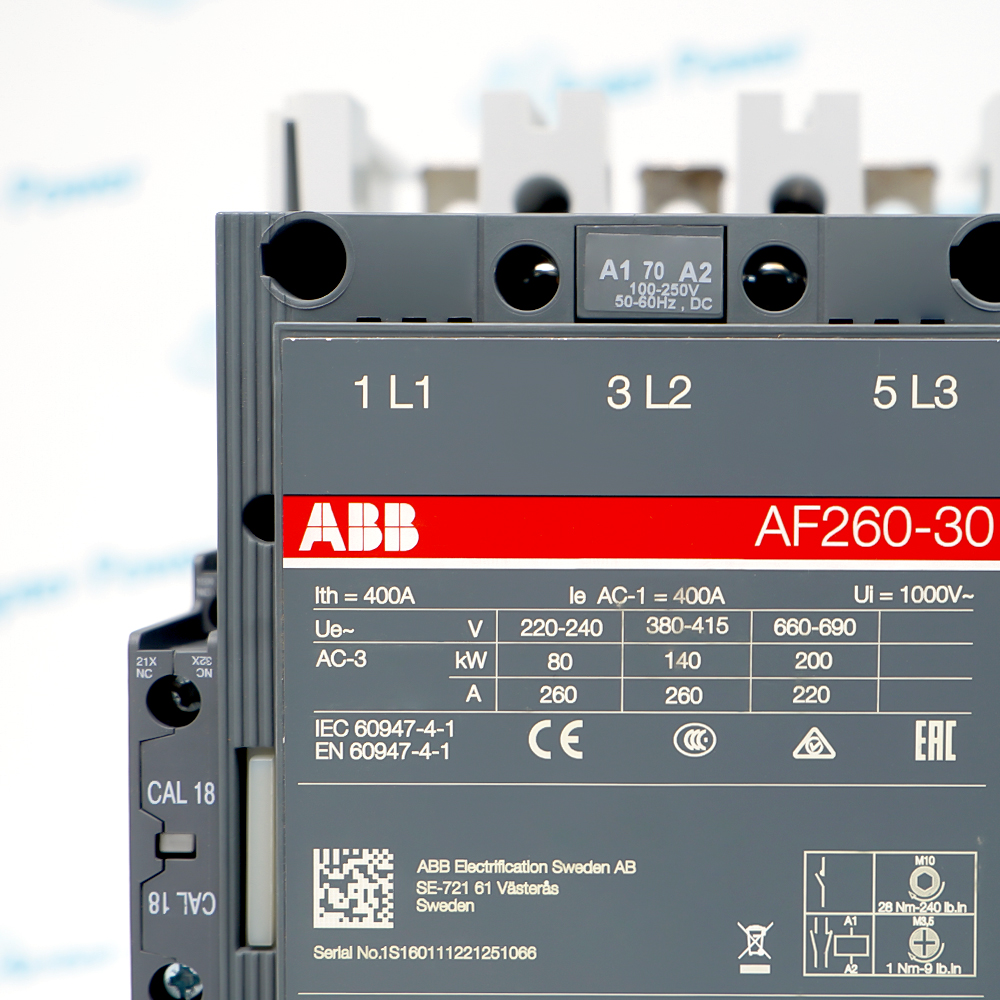

      AF260-30-11-70 1SFL537001R7011

      ABB AF Series 3-pole AC/DC Operated Contactor
      In Stock
      Ships by Friday, August 21
      Fast Shipping Available

      Product Describe：

      ABB 1SFL537001R7011 AF260-30-11-70 is a three-pole, AC/DC-operated contactor for switching three-phase motors and other industrial power circuits.

      Ask our team:

      Get a quick price for： AF260-30-11-70 1SFL537001R7011
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for AF260-30-11-70 1SFL537001R7011

      Technical specifications for AF260-30-11-70 1SFL537001R7011

      • Manufacturer:
        ABB
      • Product Category:
        General Automation
      • Spare Part Number:
        AF260-30-11-70
      • Estimated shipping dimensions:
        14x18x22.7cm
      • Weight:
        5.9 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Product Type:
        3-pole AC/DC-operated contactor
      • Main Poles:
        3 normally open
      • Auxiliary Contacts:
        1 NO + 1 NC
      • Coil Code:
        -70
      • Coil Control Voltage:
        100-250 V AC 50/60 Hz or 100-250 V DC
      • Legacy AC-3 Rating:
        260 A at 400 V
      • Legacy AC-1 Rating:
        400 A at ambient not above 40 °C
      • Minimum Starting Command:
        70 ms
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB 1SFL537001R7011 AF260-30-11-70 is a three-pole AC/DC-operated contactor for switching three-phase motors and other industrial power circuits.
      • Three normally open main poles
      • Electronic coil: 100-250 V AC at 50/60 Hz or 100-250 V DC
      • One normally open and one normally closed auxiliary contact
      • Legacy ratings: 260 A AC-3 at 400 V and 400 A AC-1 at up to 40 degrees C

      Its electronic coil opens or closes the three main poles from a low-power command, while built-in auxiliary contacts and documented ABB accessories support hardwired status, control and interlocking in industrial switching systems.

      Important Notice: ABB maps order code 1SFL537001R7011 to exact type AF260-30-11-70, so the -70 coil-voltage suffix must not be omitted.

      Apter Power AF260-30-11-70 1SFL537001R7011 Manuals and Guides

      Important Notice: The first link is the product-parameters PDF prepared only from the cited manufacturer information; the second link is the Apter Power product manual. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.

      Three-phase motor starters
      Switches motor power circuits when selected and protected for the actual utilization category.
      Industrial power switching
      Controls three-pole industrial loads from the documented AC or DC coil command.
      Bypass and interlocked circuits
      Uses documented auxiliary-contact and mechanical-interlock accessories for hardwired arrangements.
      Lighting and coordinated capacitor loads
      Supports documented lighting control and capacitor switching only with ABB's applicable selection tables and accessories.
      Follow ABB's contactor instructions and select the device, protection and accessories for the actual load and coordination requirements.
      1
      Installation, operation and service must be performed by a qualified electrician in accordance with applicable standards.
      2
      Disconnect and isolate all power before installation or service and never touch live parts.
      3
      Confirm that the control supply matches the -70 coil marking.
      4
      Use ABB's specified terminal sizes and tightening torques to prevent overheating or damage.
      5
      Select the contactor and protective devices with ABB's utilization-category, coordination and short-circuit tables for the actual load.

      Alternative Names

      Alternative Names

      ABB AF260-30-11-70 ABB 1SFL537001R7011 AF260-30-11-70 Contactor 1SFL537001R7011 AF260 Contactor

      Technical notes

      Technical notes

      ABB maps order code 1SFL537001R7011 to AF260-30-11-70; the -70 coil suffix must not be omitted. The exact current lifecycle phase was not located; ABB replacement material lists AF265-30-11-13 as a successor, subject to application verification. The 6.2 kg weight is from an older official ABB catalog and should be reconfirmed against the exact physical unit for logistics. Country of origin, tariff code and dimensions were not published in the cited ABB sources. Confirm accessory compatibility, utilization category, coordination and short-circuit ratings in the applicable ABB tables.

      FAQS

      • What is the exact ABB type for order code 1SFL537001R7011?
        ABB identifies 1SFL537001R7011 as AF260-30-11-70. The -70 suffix identifies the 100-250 V AC/DC electronic coil range.
      • What does the AF260-30-11-70 do?
        It is a three-pole contactor that uses an electronic AC/DC coil interface to open or close a three-phase motor or other power circuit.
      • What control voltage does the -70 coil accept?
        ABB lists 100-250 V AC at 50/60 Hz or 100-250 V DC. The supply must be checked against the unit marking before energization.
      • How many main and auxiliary contacts are provided?
        The type has three normally open main poles and one normally open plus one normally closed auxiliary contact.
      • What current ratings does ABB list for the legacy AF260 entry?
        The reviewed ABB catalog lists 260 A for AC-3 motor duty at 400 V and 400 A for AC-1 duty at an ambient temperature not above 40 degrees C. Application-specific derating and coordination rules still apply.
      • Can it be used only for motors?
        No. ABB also lists general power switching, bypass, lighting, capacitor-switching and DC power-circuit applications, but each use requires selection from the relevant ABB rating table.
      • Which accessories are documented for the contactor family?
        ABB legacy catalogs list CAL5-11/CAL5-11B auxiliary-contact blocks and mechanical-interlock accessories such as VM300H for the applicable range. Confirm the exact accessory table before ordering.
      • Is AF260-30-11-70 still the current ABB design?
        ABB replacement material points from the legacy AF260-30-11 order code to AF265-30-11-13. The reviewed sources did not provide an exact current life-cycle phase for 1SFL537001R7011, so it should not be advertised as Active without further ABB confirmation.
