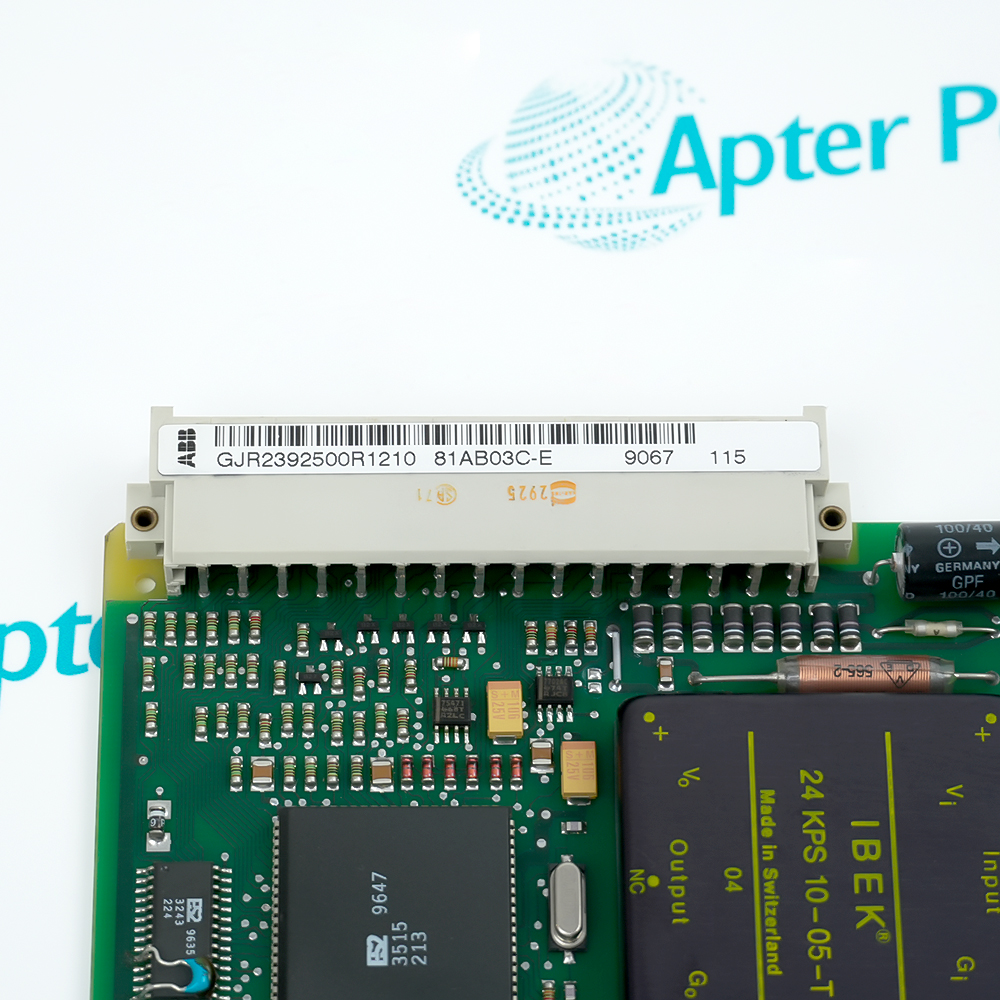

The GJR2392500R1210 81AB03C-E is a dedicated component of the ABB Procontrol P14 distributed control system. Serving as a binary/digital output interface within the local or remote I/O rack, this module converts the internal bus logic commands of the control system into level control signals for external field actuators.
High-Density Multi-Channel Configuration
Absolute Physical and Logical Isolation
Seamless Backward Compatibility
GJR2392500R1210 81AB03C-E integrates 16 binary output channels (16-fold channels). Each channel operates independently in physical and logical configurations to prevent inter-channel signal crosstalk. The standard rated output drive voltage is 24 V DC, and the continuous rated output current per channel is limited to 100 mA. The current output characteristic accommodates high-impedance and low-power loads. It operates to drive electronic input stage interfaces, miniature solenoid valves, electrically isolated relays, intermediate contactors, and LED signal indicator lamps in central control rooms within process automation fields.
The front panel of the module is equipped with LED status indicators. A green light displays the logic power supply and operating status (Run/Ready), and each channel corresponds to an independent yellow/red indicator to reflect the real-time logical output state (High/Low) and electrical faults such as wire breaks or short circuits.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Used in boiler auxiliary control systems to drive start relays and solenoid valves for feedwater pumps and forced draft fans.
Hydroelectric Power
Used in hydro-turbine generator governor control, outputting signals to adjust guide vane openings for speed stabilization.
Nuclear Power
Used in non-safety class auxiliary conventional island control to operate cooling water circulation pumps and various isolation valves.
Petroleum Refining Industry
Used in crude oil heating furnace control to drive fuel gas shut-off valves and alarm indicator lamps on operation panels.
Iron and Steel Smelting Industry
Used in blast furnace blower control systems to control diverting valves for air pipelines and cooling water circuits.
Chemical Manufacturing Industry
Used in reactor temperature control loops, outputting binary signals to switch between steam heating valves and chilled water cooling valves.
When operating the GJR2392500R1210 81AB03C-E module, you must strictly adhere to the maximum current and voltage limits per channel, preventing any external load short circuits to avoid burning out the internal drive components.
When inserting or extracting the module from the rack, ensure proper grounding across all system parts, and perform the swap under power-off conditions or after verifying that peripheral equipment is in a safe state to prevent accidental malfunctions.
GJR2392500R1210 81AB03C-E, as a long-lifecycle spare part for the Procontrol P14 series, is fully backward compatible with the earlier 81AB01R1010, 81AB10R0100, and 81AB10R0200 modules in terms of circuit topology and timing logic. When performing legacy system expansion or faulty spare part replacement, there is no requirement to modify underlying system drivers or rewrite control logic.
Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.
How many parts do you have in stock?
We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies.
What is the GJR2392500R1210 81AB03C-E industrial device?
The GJR2392500R1210 81AB03C-E is a Procontrol P14 series distributed control system digital output module manufactured by ABB, specifically designed for automation control in power plants and heavy industries.
What is the primary function of the GJR2392500R1210 81AB03C-E?
As a binary output card, this module is responsible for converting the system's internal control logic into electrical voltage signals to drive external relays, solenoid valves, and indicator lamps.
What are the core electrical specifications of the GJR2392500R1210 81AB03C-E?
The module provides 16 output channels, with a standard output voltage of 24V DC and a maximum rated current per channel typically at 100mA.
