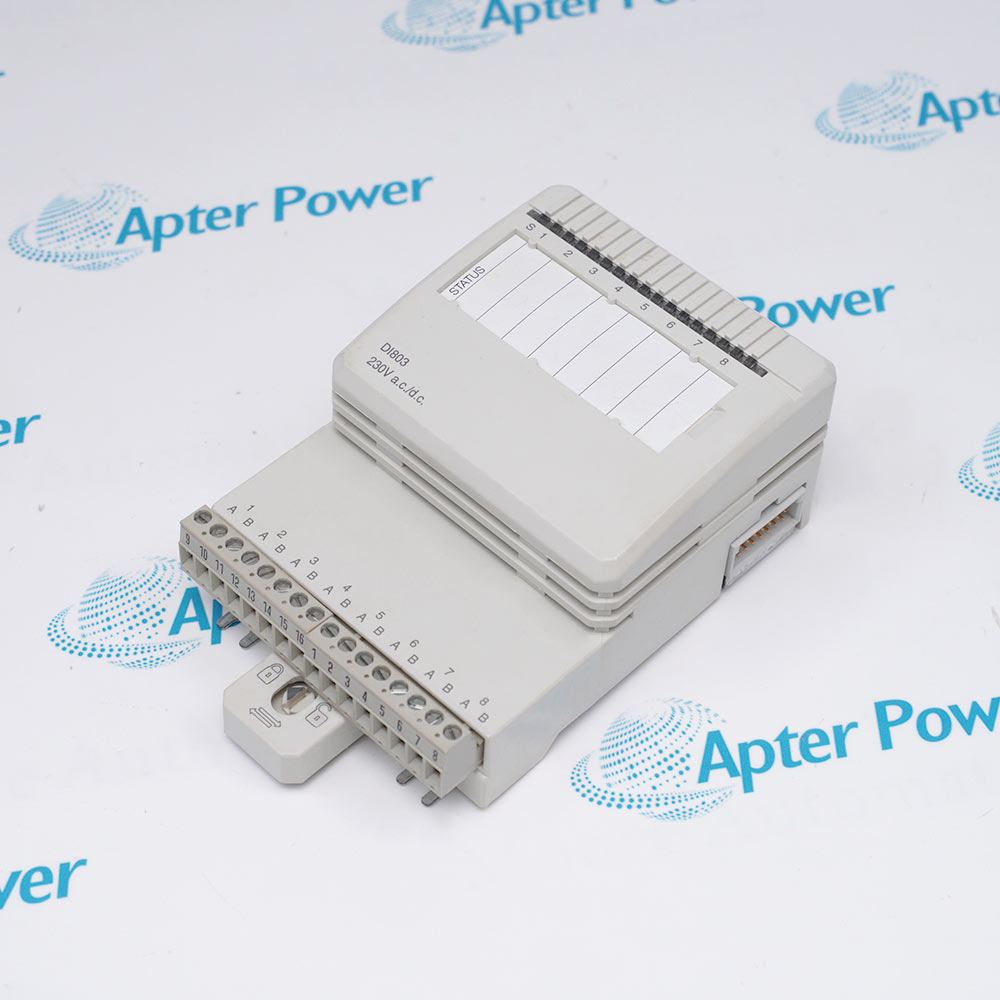

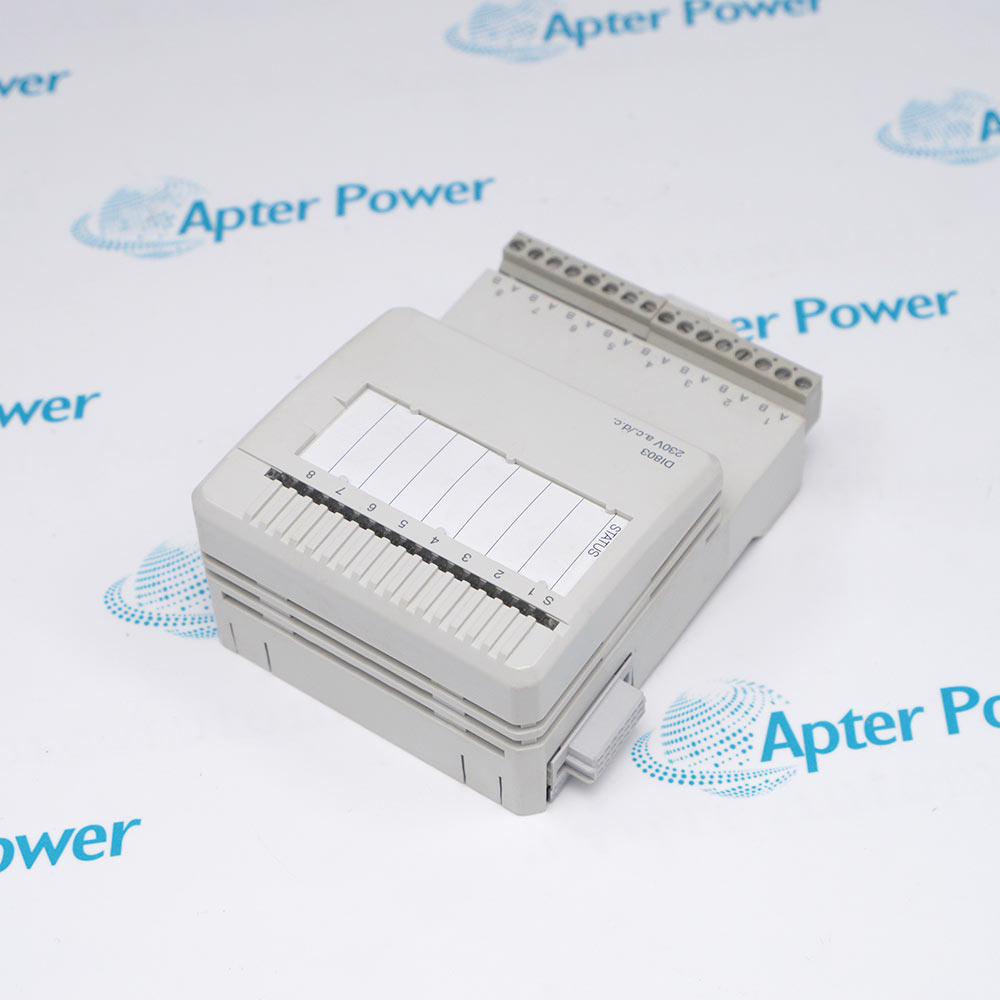

      ABB DI803 3BSE022362R1
      ABB DI803 3BSE022362R1
      ABB DI803 3BSE022362R1
      ABB DI803 3BSE022362R1
      ABB DI803 3BSE022362R1
      ABB DI803 3BSE022362R1
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      DI803 3BSE022362R1

      Digital Input Module
      In Stock
      Ships by Saturday, October 24
      Fast Shipping Available

      Product Describe：

      ABB DI803 3BSE022362R1 is an eight-channel S800 I/O digital input module for 230 VAC or 220 VDC current-sinking field signals. Each channel is individually galvanically isolated and supports selectable input filtering.

      Ask our team:

      Get a quick price for： DI803 3BSE022362R1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for DI803 3BSE022362R1

      Technical specifications for DI803 3BSE022362R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        3BSE022362R1
      • Estimated shipping dimensions:
        9.3x13.6x5.7cm
      • Weight:
        0.24 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Product family:
        S800 I/O / S800L
      • Function:
        Digital input module
      • Input channels:
        8
      • Field signal:
        230 VAC or 220 VDC, current sinking
      • Logic 1 range:
        164-264 VAC or 175-275 VDC
      • Logic 0 range:
        0-50 VAC or 0-40 VDC
      • Channel isolation:
        Individually galvanically isolated
      • Selectable filter:
        2, 4, 8 or 16 ms
      • AC frequency:
        47-63 Hz
      • Rated insulation voltage:
        250 V
      • Input impedance:
        30 kOhm AC; 134 kOhm DC
      • Status indication:
        Channel LEDs and voltage supervision
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Within an S800 I/O station, ABB DI803 3BSE022362R1 converts discrete high-voltage field states into controller-readable channel status while keeping each point electrically separated. Its filter options let commissioning teams balance input response against noise rejection.
      • Accepts eight current-sinking field inputs in one S800 I/O module.
      • Keeps every input channel galvanically isolated from the others.
      • Provides selectable filtering for 2, 4, 8 or 16 ms response behavior.
      • Uses channel indication and supervision for controlled commissioning checks.

      Retain the recorded terminal assignment, field-voltage class and filter setting. Verify every channel independently before restoring the affected process function.

      Important Notice: Confirm that the installed S800 configuration permits the selected AC or DC input class and that the terminal unit, field isolation and controller database agree with the recorded channel map.

      ABB DI803 3BSE022362R1 Manuals & Downloads
      ABB DI803 3BSE022362R1 Technical Reference (PDF)ABB DI803 3BSE022362R1 Installation & Commissioning Guide (PDF)

      The technical reference records the verified digital input module parameters and system role; the installation guide separates identity checks, configuration capture, restoration and controlled acceptance.

      High-voltage digital sensingReceives documented 230 VAC or 220 VDC contact-state signals in an S800 I/O station.
      Individually isolated inputsSeparates the eight input channels to preserve the intended field-circuit boundaries.
      Selectable response filteringApplies the configured 2, 4, 8 or 16 ms filter to match the approved signal behavior.
      Channel service verificationUses input indication and controller diagnostics to prove each restored field point.
      Read the ABB S800 I/O instructions before work. Verify DI803 3BSE022362R1, the 230 VAC or 220 VDC field class, terminal assignments and configured input filters.
      1
      Confirm the complete DI803 3BSE022362R1 identity and S800 I/O station position.
      2
      Place every affected field circuit and controlled process function in the approved maintenance state.
      3
      Record all eight terminal assignments, signal voltages and configured filter values before removal.
      4
      Treat each input as an individually isolated high-voltage field circuit and verify absence of energy.
      5
      Do not substitute a nearby S800 input module based only on channel count or front appearance.
      6
      Restore the documented 230 VAC or 220 VDC current-sinking wiring without mixing channel returns.
      7
      Check channel LEDs and controller diagnostics with controlled input changes after installation.
      8
      Release the module only after all eight assigned points pass independent functional acceptance.

      Technical notes

      Technical notes

      DI803 provides eight individually isolated current-sinking inputs with channel status indication. Match the field voltage, filter selection and terminal assignment to the approved S800 I/O configuration before replacement.

      FAQS

      • How many input channels does ABB DI803 3BSE022362R1 provide?
        DI803 provides eight digital input channels.
      • Which field signals are specified for ABB DI803 3BSE022362R1?
        It is specified for 230 VAC or 220 VDC current-sinking digital input service.
      • Are the channels on ABB DI803 3BSE022362R1 isolated?
        Yes. Each of the eight channels is individually galvanically isolated.
      • Which input filters can ABB DI803 3BSE022362R1 use?
        The selectable input-filter values are 2, 4, 8 and 16 ms.
      • What is the logic-1 range for ABB DI803 3BSE022362R1?
        The documented logic-1 range is 164-264 VAC or 175-275 VDC.
      • What is the logic-0 range for ABB DI803 3BSE022362R1?
        The documented logic-0 range is 0-50 VAC or 0-40 VDC.
      • Which AC frequency range applies to ABB DI803 3BSE022362R1?
        The documented AC input frequency range is 47-63 Hz.
      • How should ABB DI803 3BSE022362R1 be accepted after replacement?
        Verify each assigned input with a controlled field-state change, channel indication and matching controller diagnostics.
