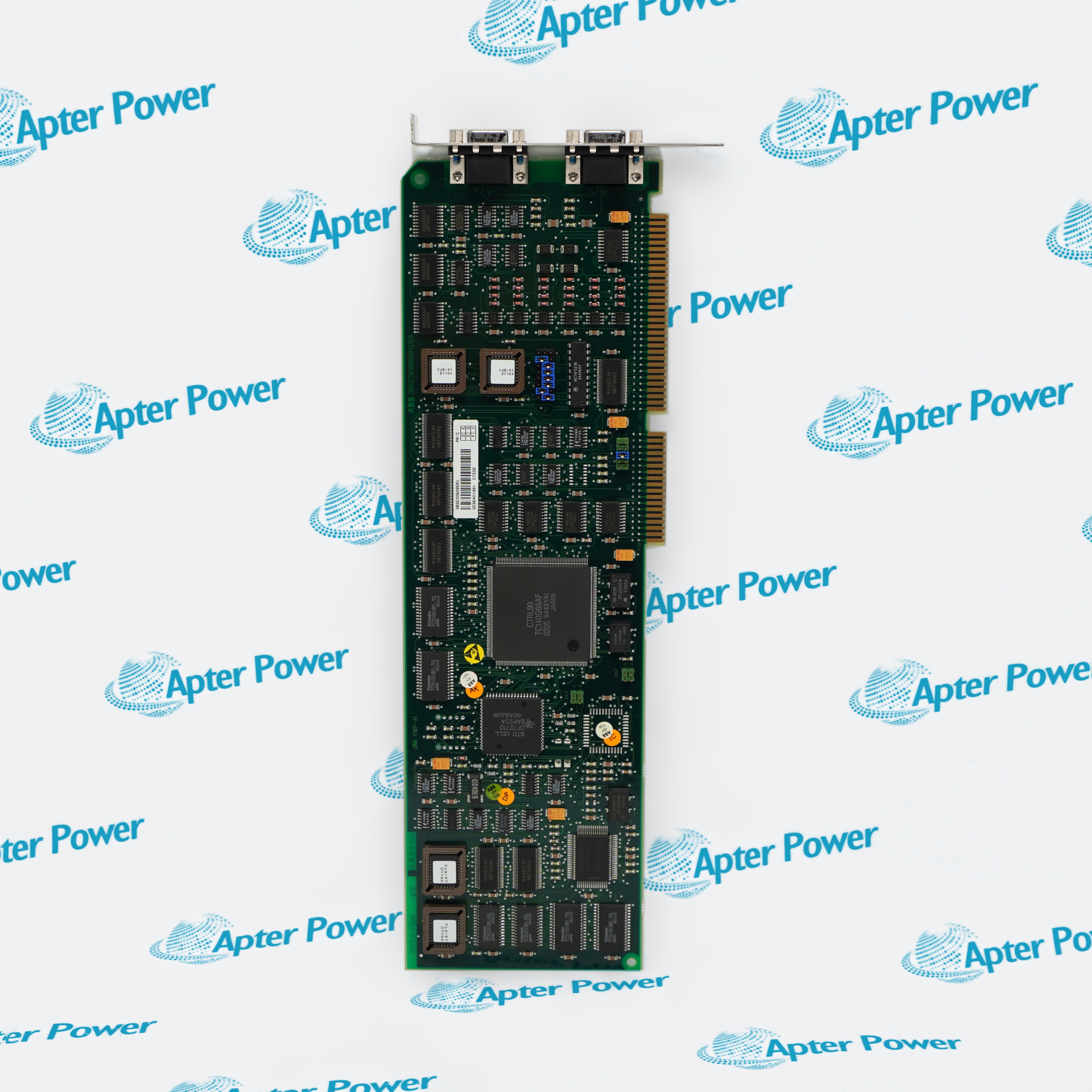

      CI626V1 3BSE012868R1

      Fieldbus Interface
      In Stock

      Product Describe：

      ABB CI626V1 3BSE012868R1 is an Advant Fieldbus 100 interface with coaxial connectors, integrated modem functions and redundant-media support.

      Ask our team:

      Get a quick price for： CI626V1 3BSE012868R1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for CI626V1 3BSE012868R1

      Technical specifications for CI626V1 3BSE012868R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        3BSE012868R1
      • Estimated shipping dimensions:
        4x26.5x27cm
      • Weight:
        1.38 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Manufacturer reference:
        CI626V1 3BSE012868R1
      • Interface:
        Advant Fieldbus 100
      • Controller association:
        Advant Controller 110 and 160
      • Media connector:
        Coaxial
      • Modem arrangement:
        Integrated
      • Media support:
        Full redundant media
      • Coaxial cable:
        75 ohm; up to 700 m per segment rule
      • Station capacity:
        Up to 80 AF 100 stations per coaxial rule
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB CI626V1 3BSE012868R1 connects an Advant Controller 110 or 160 station to coaxial Advant Fieldbus 100 media.
      • Coaxial fieldbus interface
      • Integrated media modems
      • Full redundant-media support
      • AC 110 and AC 160 association

      Two integrated coaxial modem paths allow the interface to participate in a redundant bus design. Cable impedance, termination, single-point grounding, station count and controller database configuration define the installed communication channel.

      Important Notice: Preserve the complete CI626V1 3BSE012868R1 identity and redundant cable assignment. The earlier CI626 does not provide the same redundancy and was replaced by CI626V1.

      ABB CI626V1 3BSE012868R1 Manuals & Downloads

      ABB CI626V1 3BSE012868R1 Official Manufacturer Manual Excerpt (PDF)ABB CI626V1 3BSE012868R1 Installation & Commissioning Guide (PDF)

      The manual excerpt covers the interface, media and redundancy basis. The installation guide focuses on controlled preparation, restoration, commissioning and handover.

      Redundant coaxial AF 100
      Connects a controller station to two coaxial media paths.
      Legacy controller networking
      Provides the fieldbus interface used by AC 110 or AC 160 stations.
      Media restoration
      Restores integrated modem and cable assignments during exact interface service.
      Network fault investigation
      Supports controlled checks of termination, grounding and redundant-path diagnostics.
      ABB CI626V1 3BSE012868R1 installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
      1
      Read CI626V1 and 3BSE012868R1 from the installed record.
      2
      Place the controller and connected process in the approved maintenance state.
      3
      Record cable A and cable B, BNC positions and termination points.
      4
      Capture database elements, station address and timeout settings.
      5
      Remove interface and media power according to the approved procedure.
      6
      Inspect coaxial connectors, 75-ohm terminations and cable grounding.
      7
      Restore redundant paths to their recorded connectors and configuration.
      8
      Prove both media paths and retain fieldbus diagnostics before release.

      Technical notes

      Technical notes

      Retain the exact CI626V1 3BSE012868R1 identity with its installed configuration and acceptance record. Release the equipment only after model-specific diagnostics and the intended field response have been witnessed.

      FAQS

      • What is ABB CI626V1 3BSE012868R1?
        It is an Advant Fieldbus 100 interface used with Advant Controller 110 and 160.
      • Which connectors does ABB CI626V1 3BSE012868R1 use?
        It uses coaxial connectors with integrated modem functions.
      • Does ABB CI626V1 3BSE012868R1 support redundant media?
        Yes. It supports full redundant-media operation.
      • How does CI626 differ from ABB CI626V1 3BSE012868R1?
        CI626 has reduced redundancy and was replaced by CI626V1.
      • What cable basis applies to ABB CI626V1 3BSE012868R1?
        Use 75-ohm coaxial media with up to 700 m per segment under the applicable network conditions.
      • What network record must be kept for ABB CI626V1 3BSE012868R1?
        Retain station address, database elements, timeout settings, cable identity, termination and grounding.
      • How is redundant operation checked for ABB CI626V1 3BSE012868R1?
        Test each approved media path separately while monitoring fieldbus and controller diagnostics.
      • Can the two coaxial cables be grounded independently?
        No. Redundant cables should use the same single grounding location.
